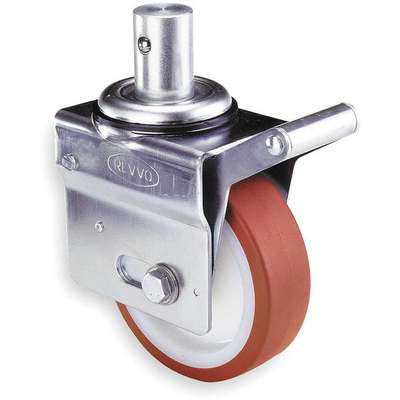

8" Medium-Duty Swivel Stem Caster, 1800 lb. Load Rating

8" Medium-Duty Swivel Stem Caster, 1800 lb. Load Rating
Scaffold Caster,Polyurthan,8
PI_Asset_1356955

#924243-3 | Pkg Qty: 1

$79.45 pkg | $79.45 ea
Item Number 924243-3
Scanner Description Scaffold Caster,Polyurthan,8
Inventory Status Drop Ship Item
Weight 10 lb
Brand APPROVED SUPPLIER

Technical Specifications

Application
Scaffolding
Frame Material
Steel
Brand
APPROVED SUPPLIER
Item
Stem Caster
Caster Brake Included
Yes
Load Rating
1800 lb.
Caster Brake Type
Pedal
Mfr. Part Number
SJE 200 NT0E B21
Caster Core Material
Nylon
Non-Marking
Yes
Caster Group
Swivel Caster with Brake
Number of Wheels
1
Caster Load Rating Range
Medium Duty
Overall Height
9-1/2 in.
Caster Raceway
Double Ball
Pack Quantity
1
Caster Stem Type
Round
Standards
BS 1139
Caster Sub-Type
Swivel
Stem Diameter
1-1/2 in.
Caster Temperature Range
-22 Degrees to 176 Degrees F
Stem Length
2 in.
Caster Temperature Range Available
Yes
Stem Type
Round
Caster Wheel Bearings
Plain
Wheel Bearings
Plain Bore
Caster Wheel/Tread Material
Polyurethane
Wheel Color
Red
Core Color
White
Wheel Diameter
8 in.
Core Material
Nylon
Wheel Material
Polyurethane
Features
Plug Fitting, Zero Offset
Wheel Width
1-3/4 in.
Frame Finish
Zinc Plated

Product Description

These bolt-in stem casters have a round stem that fits into structural framing made of round metal tubing. Each caster has a total-lock brake that can be engaged to prevent the caster's wheel and swivel mechanism from moving. Sometimes called scaffold casters, these casters are used on light-duty scaffolding, work platforms, workbenches, and tables that will be moved frequently but must be kept stable and immobilized when people are using them. They can help prevent injuries that may be caused if the casters roll or turn unexpectedly. These casters have zinc-plated steel frames and double ball swivel bearings that allow the caster to swivel smoothly. They are suitable for janitorial, maintenance, painting, electrical, and construction applications.

These bolt-in stem casters have a round or square stem that fits into structural framing made of metal tubing or angle iron. They can be attached to scaffolding, racks, and carts built from structural framing to allow the equipment to roll as its being moved or repositioned, which reduces the effort required to move the equipment. In general, the shape and size of the stem determines the type of frame the caster will fit into, and bolts or pins are installed into cross-drilled mounting holes in the framing and the caster's stem to secure the caster in place on the framing.
