HONEYWELL

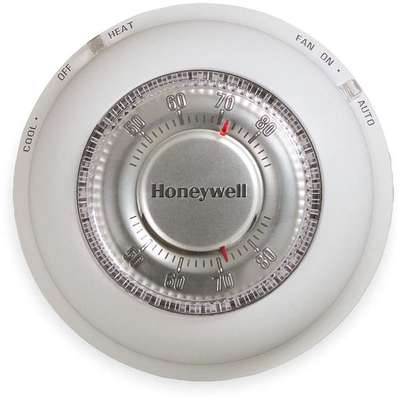

Honeywell Low Voltage Thermostat: Analog, Heat and Cool, Manual, Cool-Heat-Off, Auto-On

Hover over image to magnify
Low V Mechanical Tstat,40 To
Low V Mechanical Tstat,40 To

#924239 | Pkg Qty: 1

$108.80 pkg | $108.80 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HONEYWELL
Mfr. Part Number
T87N1000
Color Family
White
Mounting Position
Round
Depth
1-3/4 in.
Package Quantity
1
Display Type
Analog
Shipping Weight
.4 lb.
Item
Low Voltage Thermostat
Voltage
20 VAC to 30 VAC
General
Changeover Type
Manual
Minimum Operating Humidity
0.05
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems
Mounting Direction/Shape
Round
Dehumidification Control
No
Number of Cooling Stages - Conventional System
1
Dual Transformer Compatible
Yes
Number of Cooling Stages - Heat Pump System
1
Electrical Connection Type
Hardwired
Number of Heating Stages - Conventional System
1
Fan Settings
Auto-On
Number of Heating Stages - Heat Pump System
1
Features
Mercury Free
Operating Humidity Range
5% to 90%
For Use With
Gas, Oil, Electric, Forced Warm Air, Hot Water, Steam or Gravity, Cooling, 4 or 5 Wire Systems
System Settings
Cool-Heat-Off
Humidification Control
No
System/Fan Settings
Heat-Off-Cool/Auto-On
Includes
Subbase
Temperature Control Range
40 Degrees to 90 Degrees F
Includes Positive Off
Yes
Temperature Readout
Yes
Maximum Control Temperature
90 Degrees F
Temperature Scale
Fahrenheit
Maximum Operating Humidity
0.9
Temperature Sensitivity
+/-2 Degrees F
Mercury Free
Yes
Terminal Designations
B, G, O, R, RC, W, Y
Minimum Control Temperature
40 Degrees F
Thermostat Type
Low Voltage

Product Description

Low Voltage Thermostat, Terminal Designations R, RC, Y, W, G, O, B, System Switching Heat-Cool-Off, Fan Switching Auto-On, Dual Transformer Compatible Yes, Power Method Hardwired, Voltage 20V AC to 30V AC, Mounting Round, Depth 1 3/4 in, Diameter 3 11/16 in, Color White, Control Range 40 Degrees to 90 Degrees F, Features Mercury Free, For Use With Gas, Oil, Electric, Forced Warm Air, Hot Water, Steam or Gravity, Cooling, 4 or 5 Wire Systems, Includes Subbase
