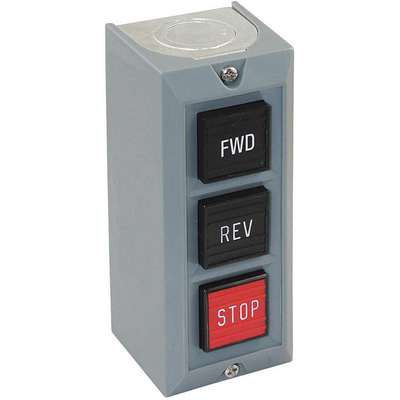

Push Button Control Station, 2NO/2NC, 1NC Contact Form, Number of Operators: 3

Push Button Control Station, 2NO/2NC, 1NC Contact Form, Number of Operators: 3
Push Button Control Station,
PI_Asset_1362917

#924231-7 | Pkg Qty: 1

$71.66 pkg | $71.66 ea
Item Number 924231-7
Scanner Description Push Button Control Station,
Inventory Status Drop Ship Item
Weight 0.83 lb
Brand DAYTON

Technical Specifications

Action
Momentary / Momentary / Momentary
Length
5.04 in.
Brand
DAYTON
Material of Construction
ABS/PC Cover
Contact Form
2NO/2NC, 1NC
Mechanical Interlock
No
Contact Rating
10A @ 600VAC, 5A @ 24VDC
Mfr. Part Number
20C796
Contact Type
2NO/2NC and 1NC
Mounting
Wall
Depth
2.06 in.
NEMA Contact Rating Designation
A600/P600
Enclosure Color
Gray
NEMA Rating
1
Enclosure Material
Glass Filled Polyester
Number of Operators
3
Head Material
Plastic
Operator Color
Black/Black/Red
Height
2.19 in.
Pack Quantity
1
Hub
1/2 in. to 3/4 in. NPT
Product Size
25mm
IP Rating
40
Standards
UL508, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, NEMA 50
Item
Push Button Control Station
Type of Operator
Push Button/Push Button/Push Button
Legend
Forward/Reverse/Stop
Voltage
600 VAC/DC
Legend Markings
Forward/Reverse/Stop
Width
3.69 in.

Product Description

Push Button Control Station, Number of Operators 3, Size 25 mm, Legend Forward/Reverse/Stop, Type of Operator Push Button/Push Button/Push Button, Action Momentary / Momentary / Momentary, Operator Color Black/Black/Red, Contact Form 1NC, 2NO/2NC, Mechanical Interlock No, NEMA Rating 1, Contact Rating 10A @ 600V AC, 5A @ 24V DC, NEMA Contact Rating Designation A600/P600, IP Rating 40, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 2.19 in, Width 3.69 in, Depth 2.06 in, Head Material Plastic

Compliance & Restrictions

Prop 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9242317
  Name Item Description
Grainger Dropship Grainger Dropship 20C796 Push Button Control
UNSPSC CODES UNSPSC CODES 39121104
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Push Button Control
