SPEEDAIRE

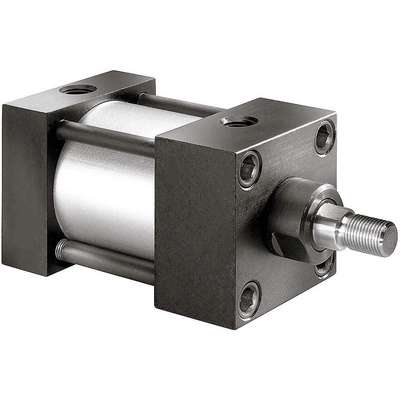

2" Air Cylinder Bore Dia. with 8" Stroke Aluminum , Side Tapped/Sleeve Nut Mounted Air Cylinder
Hover over image to magnify
#924206-8 | Pkg Qty: 1
$300.95 pkg | $300.95 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Dimension Mm
5/8
Air Cylinder Mount
Side Tapped/Sleeve Nut
Dimension Nt
5/16 in.-18
Air Cylinder Type
NFPA
Dimension P
2.34
Body Material
Aluminum
Dimension Y
1-7/8
Bore Diameter
2 in.
End Cap Material
Aluminum
Brand
SPEEDAIRE
Finish
Silver and Black
Cushion Type
Adjustable
Item
Air Cylinder
Cylinder Action
Double Acting
Maximum Load
785 lb.
Cylinder Ports
1/4 NPT
Maximum Pressure
250 psi
Cylinder Type
NFPA
Mfr. Part Number
6X384
Dimension A
.75 in.
Mount
Side Tapped/Sleeve Nut
Dimension B
1.124 in.
Mounting Style
Side Tapped/Sleeve Nut
Dimension C
0.375 in.
Overall Length
13-3/8 in.
Dimension Db
5/16 in.-24
Package Quantity
1
Dimension E
2.5 in.
Port Size
1/4 in. NPT
Dimension Ee
1/4 NPT
Shipping Weight
4.65 lb.
Dimension G
1.5 in.
Stroke
8 in.
Dimension J
1.00 in.
Tube Material
Aluminum
Dimension Kk
1/2 in.-20
Type
Double Acting
Dimension Lb
3-5/8
General
Action Type
Double Acting
Piston Rod Material
Chrome Plated Steel
Air Cylinder Bore Dia.
2 in
Rod Dia.
0.625 in
Air Cylinder Product Group
Air Cylinder
Rod Thread Length
0.75 in
Bore Dia.
2 in
Rod Thread Size
1/2"-20
End Caps
Aluminum
Single Acting/Double Acting
Double Acting
Features
Sq. Head, Piston magnet, Adjustable Cushions
Tie Rod Material
Steel
Piston Rod
Chrome Plated Steel
Tie Rods
Steel
Product Description
This NFPA square-head tie rod aluminum cylinder is designed with a replaceable rod gland and fully adjustable cushion to allow a full range of NFPA MS4 interchangeable mounting configurations. 4 internal-threaded sleeve nuts recessed in the head and 4 tapped holes in the cap permit direct mounting. Noncushioned, magnetic piston.
Expertly Selected Product Pairings
Item Barcode
Air Cylinder,2 In Bore,8 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6X384 | Air Cylinder, 2 In Bore,8 |
 | UNSPSC CODES | 27131701 | |
 | VMRS (ATA) CODES | 053-006-009 | Air Cylinder, 2 In Bore,8 |
