JANCY

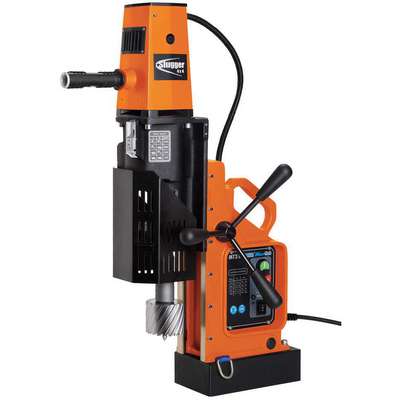

Jancy Magnetic Drill Press, 120VAC, 4" Capacity Steel, 150 to 220/290 to 450 No Load RPM

Hover over image to magnify
Magnetic Drill Press Kit,Var 2
Magnetic Drill Press Kit,Var 2

#924151-4 | Pkg Qty: 1

Pricing is subject to change without notice
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Amps @ 120 V
11.7
Mfr. Part Number
JMU 4 X 4
Brand
JANCY
Package Quantity
1
Characteristics
Magnet Circuitry That Prevents The Drill Motor From Starting On Non-Ferrous Material Or Ferrous Material That Is TooThin To Allow Proper Magnetic Adhesion And Will Also Shut The Motor Down If The Magnet Should Break Free From The Work
Shipping Weight
99 lb.
Corded/Cordless
Corded
Tool Length
16 in.
Item
Magnetic Drill Press
General
Chuck Style
Keyed
Maximum Core Bit Compatibility
4 in
Coolant System
Yes
Maximum Spindle Speed
450 RPM
Current
11.7 A
Maximum Working Speed
310 RPM
Drill Point Pressure
4,833 lb
Minimum Spindle Speed
100 RPM
Drill Travel
8 7/16 in
Minimum Working Speed
100 RPM
Drilling Capacity in Aluminum
4 in
Power Down Feed Included
No
Drilling Capacity in Cast Iron
1 in
Spindle Speed
100 RPM - 450 RPM
Drilling Capacity in Masonry
4 in
Tapping Capacity in Aluminum
1 1/8 in
Drilling Capacity in Stainless Steel
3 7/8 in
Tapping Capacity in Cast Iron
1 1/8 in
Drilling Capacity in Steel
4 in
Tapping Capacity in Masonry
1 1/8 in
Drilling Capacity in Wood
1 in
Tapping Capacity in Steel
1 1/8 in
Features
Magnet Circuitry Prevents Drill Motor from Starting on Non-Ferrous Material or Ferrous Material that is TooThin to Allow Proper Magnetic Adhesion and will also Shut Motor Down if Magnet Should Break Free from the Work
Tapping Capacity in Wood
1 1/8 in
Includes
Cutter Shield, Safety Strap, Storage Case
Tapping Compatible
No
Magnet Type
Electro
Var. Speed
Variable Speed
Magnetic Force
21,500 N

Product Description

Magnetic Drill Presses

  • Slugger
  • Allow portable hole drilling away from stationary machinery. Smart Magnet® circuitry prevents the drill motor from starting on nonferrous material or ferrous material that is too thin to allow proper magnetic adhesion. Motor will shut down if magnet breaks free from the workpiece. Include safety strap, cutter shield, and storage case.
