NEMA Magnetic Motor Starter, 240VAC Coil Volts, Overload Relay Amp Setting: 15 to 45A

NEMA Magnetic Motor Starter, 240VAC Coil Volts, Overload Relay Amp Setting: 15 to 45A

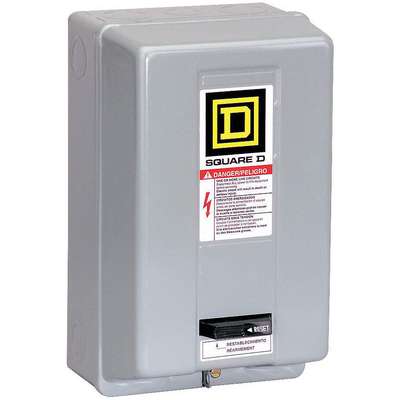

Nema Magnetic Motor Starter
NEMA Magnetic Motor Starter, 240VAC Coil Volts, Overload Relay Amp Setting: 15 to 45A Video

#924134-2 | Pkg Qty: 1

$1,052.64 pkg | $1,052.64 ea
Item Number 924134-2
Scanner Description Nema Magnetic Motor Starter
Inventory Status Drop Ship Item
Weight 13 lb
Brand SQUARE D

Technical Specifications

Action
Nonreversing
NEMA Enclosure Type
1
Amps AC
45
NEMA Rating
1
Brand
SQUARE D
Pack Quantity
1
Enclosure Type
Enclosed
Standards
UL, CSA
Features
Solid State Overload Relay
Starter Type
NEMA Style
Hz
50/60
Type
NEMA
Mfr. Part Number
8536SDG1V03H30

Product Description

NEMA Magnetic Motor Starters with Solid State Overload Relays

  • Class 10/20 selectable thermal protection 3-pole, 60/50 Hz, 600VAC max.
  • Full-voltage starters start and stop 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Overload relay has heaterless construction and adjustable full load amp setting. Normally open holding circuit contact allows 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing quickly extinguishes any arcing.
  • UL Listed and CSA Certified.
Item Barcode
9241342
  Name Item Description
Grainger Dropship Grainger Dropship 5F061 NEMA Magnetic
UNSPSC CODES UNSPSC CODES 39121521
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 NEMA Magnetic
