IDEAL

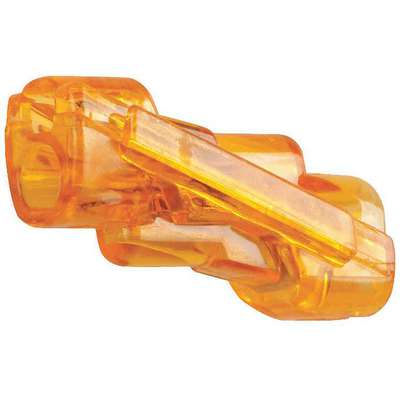

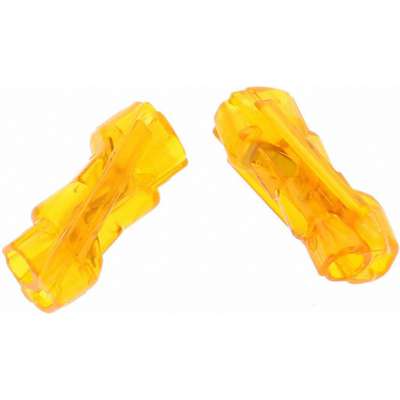

Ideal Orange In-Line Push-In Connector, Butt Splice Connector Type

Hover over image to magnify
In-Line Connectors, 2-Port,
PI_Asset_966885
PI_Asset_966886
PI_Asset_966887
PI_Asset_966888
PI_Asset_966889
In-Line Connectors, 2-Port,
PI_Asset_966885
PI_Asset_966886
PI_Asset_966887
PI_Asset_966888
PI_Asset_966889

#924087-9 | Pkg Qty: 100

$34.70 pkg | $0.35 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
IDEAL
Maximum Wire Size
12 Solid, 12 Stranded, 14 Tin-Bond Stranded
Color Family
Orange
Mfr. Part Number
30-1042
Connector Type
Butt Splice
Minimum Wire Size
20 Solid, 16 Stranded, 18 Tin-Bond Stranded
Description/Special Features
Polycarbonate Housing, Solderless Butt Splice
Package Quantity
100
Height
0.41 in.
Shipping Weight
.35 lb.
Item
In-Line Push-In Connector
Standards
UL 486C, UL 467, CSA C22.2#188
Length
1 in.
Type
Push-In
Maximum Voltage
600 V
Wire Range
20 to 12 AWG Solid, 18 to 12 AWG Stranded
Maximum Wire Combination
12-20 Solid, 12-16 Stranded, 14-18 Tin-Bond Stranded
General
Body Finish
Tin Plated
Special Features
Polycarbonate Housing, Solderless Butt Splice
Contact Finish
Tin
Strip Length
1/2 in
For Wire Size
12 AWG, 14 AWG, 16 AWG, 20 AWG
Termination Style
Push-In
For Wire Type
Solid, Stranded
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
UL Standards
UL 486C
Seam Style
Seamless
Wire Size Range
20 AWG – 12 AWG

Product Description

Splice Line™ Inline Wire Connector

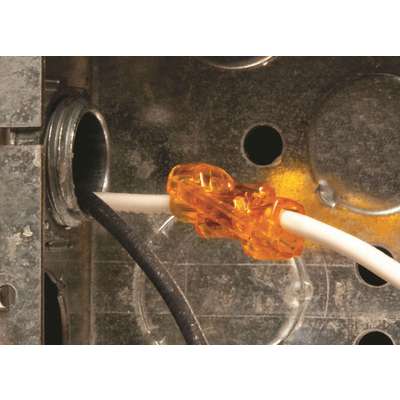

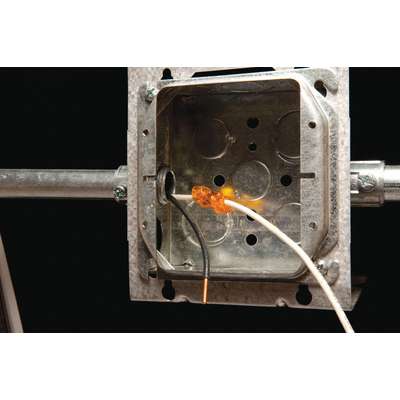

  • features a crimp-free, push-in design that installs in half the time of traditional butt splices. Easily passes through 1/2" knockouts. Perfect for lengthening a short wire in a box or for surface raceway wiring. The transparent window allows visual inspection of connection. Check port allows continuity testing.
