WIEGMANN

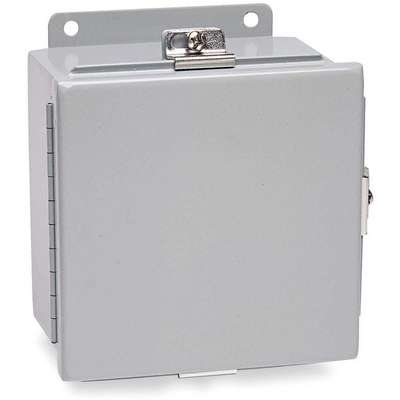

Wiegmann 12"H x 12"W x 6"D Metallic Enclosure, Gray, Knockouts: No, Screwdown Clamps Closure Method
Hover over image to magnify
#924076-8 | Pkg Qty: 1
$244.71 pkg | $244.71 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Metallic
Material of Construction
14 ga. Carbon and Stainless Steel
Brand
WIEGMANN
Material of Enclosure
Carbon Steel
Closure Method
Screwdown Clamps
Metal Gauge
14/16
Color Family
Gray
Metallic / Non-Metallic
Metallic
Cover Type
Hinged
Mfr. Part Number
BN4121206CH
Depth
6 in.
Mounting
Wall
Enclosure Cover Features
Screwdown Clamps
Mounting Hole Height
12-3/4
Enclosure Cover Type
Hinged
Mounting Hole Width
10 in.
Enclosure NEMA Rating
4, 12, 13
NEMA Rating
4, 12, 13
Finish
ANSI 61 Polyester Powder
Nominal Enclosure Depth
6 in.
Gasket
Neoprene
Nominal Enclosure Height
12 in.
Gauge
14/16
Nominal Enclosure Width
12 in.
Height
12 in.
Pack Quantity
1
Hinge Design
Continuous
Series
Bn4-Ch
IP Rating
66
Shipping Weight
15 lb.
Interior Panel
4KP36
Solid / Clear Cover
Solid
Item
Enclosure
Type
Painted Steel
Knockouts
No
Usable Opening Depth
5.88 in.
Latch Type
Screwdown Clamps
Width
12 in.
Material
Carbon Steel
General
Features
External Mounting Plate Top and Bottom
Standards
CSA Certified
Product Description
This enclosure provides nonsubmersible, watertight protection indoors and outdoors where splashing, dripping, or hose-down of noncorrosive liquids can occur. The cover is mounted to the box with a sturdy, continuous hinge.
Expertly Selected Product Pairings
Item Barcode
Junc Box Encl,Mtlc,12In.Hx
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4KP06 | Junc Box Encl,Mtlc, |
 | UNSPSC CODES | 39121301 | |
 | VMRS (ATA) CODES | 053-006-153 |
