PARKER

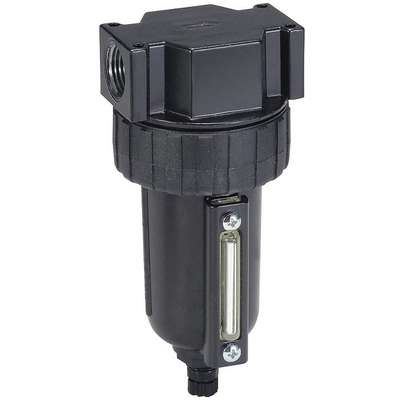

250 psi Standard General Purpose Filter
Hover over image to magnify
#924069-3 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Air Consumption
scfm
Maximum Pressure
250 psi
Bowl Material
Die Cast Zinc
Maximum Temperature
175 deg. F
Brand
PARKER
Mfr. Part Number
07F48BC
Drain Port Size
1/8 in.
Overall Height
7.67 in.
Drain Type
Automatic
Overall Width
3.24 in.
Filter Rating
5 micron
Pack Quantity
1
Housing Material
Die Cast Zinc
Pipe Size
3/4 in. NPT
Item
Filter
Product Size
Standard
Maximum Flow
145 cfm
Shipping Weight
3.24 lb.
General
Air Inlet Type
NPT
Filter Rating - Air Treatment
5 micron
Air Outlet Size
3/4 in
For Fluid Type
Oil, Water
Air Outlet Type
NPT
For Removal Of
Particles, Water
Bowl Material - Air Treatment
Zinc
For Substance Type
Liquid Water, Oil, Particles
Bowl Size - Air Treatment
7.2 oz
Max. Flow - Air Treatment
145 cfm
Connection Size - Air Treatment
3/4 in NPT
Max. Flow Range - Air Treatment
101 to 150 cfm
Drain Part Compatibility
PS506P
Max. Incoming Pressure - Air Treatment
250 psi
Filter Bowl Capacity
7.2 oz
Number of Air Inlets
1
Filter Bowl Guard Included
Yes
Number of Air Outlets
1
Filter Bowl Guard Material
Steel
Pressure Drop
5 psig
Filter Bowl Material
Zinc
Sight Gauge Included
Yes
Filter Element Material
Plastic
Size - Air Treatment
Standard
Filter Media
Polypropylene
Product Description
Filter, Standard Size, Pipe Size 3/4 In. NPT, Max. Flow 145 cfm, Filter Rating 5 micron, Max. Pressure 250 psi, Max. Temp. 175 Degrees F, Bowl Size 7.2 oz., Bowl Material Die Cast Zinc, Drain Port Size 1/8 In. , Automatic Drain Type, Polypropylene Filter Media, Housing Material Die Cast Zinc, Overall Height 7.67", Overall Width 3.24 In.
Item Barcode
Filter,3/4" NPT,Standard
