RAYCHEM

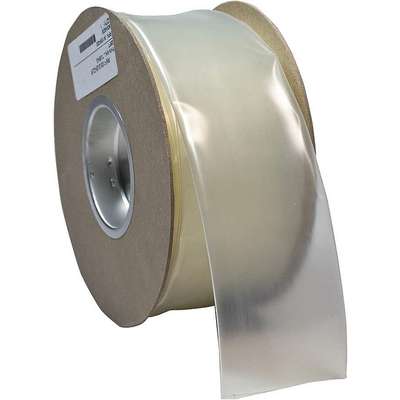

Raychem 25 ft. Thin Wall Heat Shrink Tubing, Flexible Polyolefin, Shrink Ratio 2:1
#924033-8 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Brand
RAYCHEM
Shipping Weight
1.55 lb.
Cable Range
500 to 800 kcmil
Shrink Ratio
1899-12-31 02:01:00
Color Family
Clear
Shrink Temperature
203F
Dielectric Strength
600 V
Shrink Tubing Adhesive Lined
No
Flame Retardant
Yes
Shrink Tubing Inside Diameter Before Shrinking
1.500 in.
Heat Shrink Tubing Shrink Ratio
2:1 Shrink Ratio
Shrink Tubing Length
25 ft.
Inside Diameter After Shrinking
0.750 in.
Shrink Tubing Material
Polyolefin
Inside Diameter Before Shrinking
1.500 in.
Shrink Tubing Material Type
Flexible
Inside Diameter Expanded Pre-Shrink
1-1/2 in.
Shrink Tubing Type
Heat Shrink Tubing
Item
Heat Shrink Tubing
Shrink Tubing Usable Temperature Range
-67 to 275F
Length
25 ft.
Temperature Range
-67 deg. F to 275 deg. F
Material
Polyolefin
Tube Material
Flexible Polyolefin
Material of Construction
Polyolefin
Use Shrink Tubing With Wire Size
500 to 800 kcmil
Maximum Voltage
600 V
Wall Thickness After Shrinking
0.040 in.
Mfr. Part Number
CPGI-RNF-100-1-1/2-CL-25
Wall Type
Thin Wall
Minimum Shrink Temperature
203F
Width
1-1/2 in.
Pack Quantity
1
Wire Range
500 to 800 kcmil
General
Adhesive Lined
No
Shrink Tubing Properties
Abrasion Resistant, Solvent Resistant
Features
Flame Retardant, Flexible
Shrink Tubing Wall Thickness After Shrinking
0.04 in
I.D. After Shrinking
0.75 in
Standards
UL Recognized to Standard 224 - File E35586
I.D. Before Shrinking
1.5 in
Tubing Flexibility
Flexible
Package Style
Cut to Length
Tubing Wall Type
Thin Wall
Shrink Tubing I.D. Before Shrinking
1.5 in
Use With Wire Size
500 MCM to 800 MCM
Product Description
This heat-shrink tubing is designed for jacketing wire bundles and light-duty harnesses. It helps to resist damage from abrasion and solvents. It also features a flexible design that conforms to irregular shapes. Use to identify and color-code electrical connections and wire bundles.
