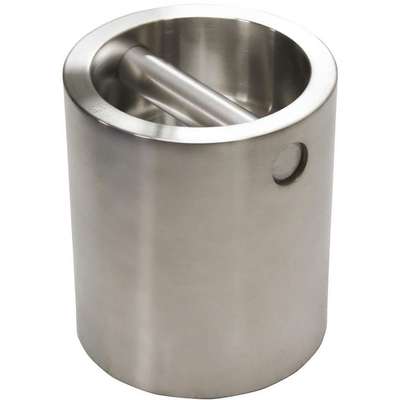

10 lb. Calibration Weight, Grip Handle Style, Class F, No Certficate, Stainless Steel

Hover over image to magnify
Calibration Weight, 10 Lb
Calibration Weight, 10 Lb

#923564-8 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Brand
RICE LAKE
Mfr. Part Number
12673
Calibration Certificate
No Certificate
Nominal Mass
10 lb.
Calibration Weight Material
Stainless Steel
Number of Pieces
1
Calibration Weight Style
Grip Handle
Overall Height
3.018 in.
Class
F
Overall Length
4.975 in.
Compliance
NIST
Pack Quantity
1
Finish
Satin
Shipping Weight
10.5 lb.
Item
Calibration Weight
Style
Grip Handle
Material
Stainless Steel
Subgroup | Calibration Weight
Calibration Weights
Measurement Type
Avoirdupois
General
Calibration Tolerance
450 mg
Calibration Weight Compliance Agency
NIST
Calibration Weight Class
F

Product Description

Use Rice Lake Weighing Systems® cast iron weights undergo a phosphatizing process in which the metal is thoroughly cleaned and mildly etched to allow finish adhesion. The weights are then coated with a layer of chip-resistant paint which conforms to NIST Handbook 105-1 standards. This 2-step process ensures a long-lasting finish that greatly reduces the possibility of corrosion.

  • Counterpoise weights for ratio weighing
  • Nominal value marked on weight
  • Weight capacities of 10kg/20 lb. and up meet NIST Handbook 105-1 and Handbook 44 specifications
  • Metric weights designated by gold paint
  • Avoirdupois weights (lb.) designated by silver paint
  • Serial numbers may be stamped on weights (optional)

Classes Available:

  • NIST Class F
  • ASTM Class 6 and 7
  • OIML Class M1 and M2

Applications:

  • Field standards for testing industrial devices Class III, Class IIlL or IIII
  • Testing for nonmarked scales without Class designation
  • Verifying scales are within specified accuracy and tolerances
