Highlight Adjustable Case Sealer, Belt Location Top and Bottom, 75 fpm, Tape Width 1 and 2"
Hover over image to magnify
#923470-9 | Pkg Qty: 1
$6,662.64 pkg | $6,662.64 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
10 A
Minimum Box Size
6 in.W x 5 in.H x 5 in.L
Belt Location
Top and Bottom
Overall Dimensions
64L x 30W x 54H
Belt Speed
75 fpm
Package Quantity
1
Brand
HIGHLIGHT
Phase
Single
Conveyor Height Adjustment Range
22 to 32 in.
Rating
115V, 7 Amp, Single Phase, 60 Hz
Frequency
60 Hz
Shipping Weight
385 lb.
Height
54 in.
Tape Width
1 and 2 in.
Item
Adjustable Case Sealer
Type
Top And Bottom Belt Drive
Length
64 in.
Voltage
115 VAC
Maximum Box Size
20 in.W x 20 in.H x Unlimited L
Warranty
5ZZX4
Mfr. Part Number
1300
Width
30 in.
General
Basic Power Source
Electric
For Minimum Box Length
5 in
Box Sealing Speed
30 cpm
For Minimum Box Width
6 in
Current
8 A
For Tape Core Diameter
3 in
For Maximum Box Height
20 in
Includes
Chrome Steel Infeed, Exit Conveyors
For Maximum Box Length
Unlimited
Max. Box Size
20 in W x 20 in H x Unlimited L
For Maximum Box Weight
75 lb
Maximum Conveyor Height
32 in
For Maximum Box Width
20 in
Min. Box Size
6 in W x 5 in H x 5 in L
For Maximum Tape Roll Diameter
16 in
Minimum Conveyor Height
22 in
For Maximum Tape Width
2 in
Overall Dimensions (In.)
64L x 30W x 54H
For Minimum Box Height
5 in
Product Description

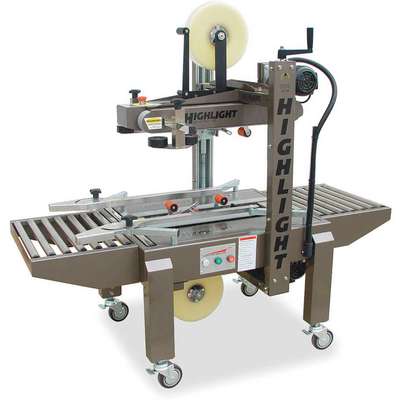

Highlight case sealer machines seal cases with 2” tape. These machines include entry and exit roller tables, four locking casters, and a pair of top compression rollers.
Item Barcode
Magnum Case Sealer,Top And
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2RVU4 | Magnum Case Sealer,Top |
 | UNSPSC CODES | 24102202 | |
 | VMRS (ATA) CODES | 053-006-009 |
