CODE 3

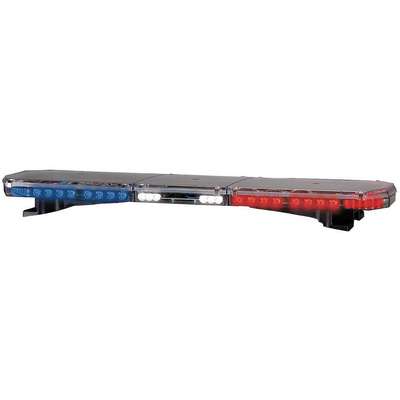

CODE 3 Class I, 47 in., Low Profile Light Bar; Flashing Blue and Red Lens with 23 Flash Patterns

Hover over image to magnify
Low Pro Lightbar,LED,Red/Blue,
Low Pro Lightbar,LED,Red/Blue,

#923180-4 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Base Material
Aluminum
Lens Material
Polycarbonate
Brand
CODE 3
Light Technology
LED
Class
I
Mfr. Part Number
21TR47A2RB
Current Drawn
19 A
Mfr. Warranty Length
5 yr. (LED)
Depth
12 in.
Mounting
Permanent
Flash Type
12 Lightheads, 23 Flash Patterns, LED TD and Alley Lights
Number of Flash Patterns
23
Flashes per Minute
Variable
Number of Heads
9
Height
2-1/8 in.
Number of LED's
38
Housing Material
Aluminum
Package Quantity
1
Item
Low Profile Light Bar
Shipping Weight
24 lb.
Lamp Life
100000 hr.
Voltage
12 VDC
Lamp Type
LED
Width
12-1/4 in.
Lens Color
Clear
Wiring Connection
Pigtail
General
Includes
Mounting Hardware, Wiring Harness
Number of LEDs
38
Light Type - Vehicle Lighting
Flashing
Standards
California Title 13; SAE J845 Class I
Mounting - Vehicle Lighting
Permanent
Wiring Connection - Vehicle Lighting
Pigtail
Number of Flash Patterns - Vehicle Lighting
23

Product Description

Lightbars include a basic central controller with 12 selectable flash patterns and dimming mode. Optional 35W Halogen and LED takedowns and alleys available at ImperialSupplies.com. Mounting brackets and hardware are also available on ImperialSupplies.com.

Item Barcode
9231804
Low Pro Lightbar,LED,Red/Blue,
 NameItemDescription
Grainger DropshipGrainger Dropship13D622Low Pro Lightbar,LED,
UNSPSC CODESUNSPSC CODES39111706
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Low Pro Lightbar,LED,
