AIRMASTER FAN

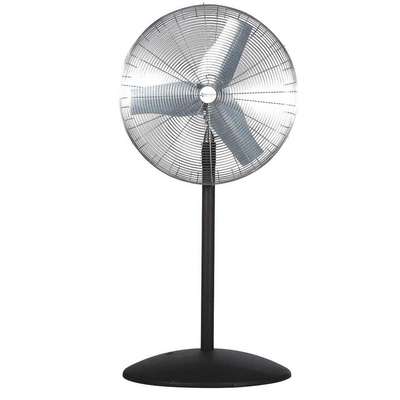

Airmaster Fan 24", Standard-Duty Industrial Fan, Oscillating, Stationary, Pedestal, 115 VAC

Hover over image to magnify
Air Circulator,24",5548CFM,115
Air Circulator,24",5548CFM,115

#923172-2 | Pkg Qty: 1

$742.81 pkg | $742.81 ea
This item requires special shipping, additional charges may apply.

Technical Specifications

Key Specifications
Agency Compliance
UL, cULus
Motor Insulation
Class B
Air Flow
2,820/4,020/5,520 cfm
Motor RPM
1110/958/856
Application
Air Circulation
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Floor
Blade Diameter
24 in.
Mounting Style
Pedestal-Mounted
Blade Material
Galvanized Steel
NEMA Plug Configuration
5-15P
Brand
AIRMASTER FAN
Number of Blades
3
Cord Length
15 ft.
Number of Conductors
3
Full Load Amps
3.2
Number of Speeds
3
Guard Material
Steel
Pack Quantity
1
Height
88-1/2 in.
Phase
1
Housing Material
Steel
Shipping Weight
86 lb.
Hz
60 Hz
Sound Level
71 dBA
Includes
Pedestal
Thermal Protection
Yes
Item
Standard-Duty Industrial Fan
Type
Industrial
Mfr. Part Number
71567
Voltage
115 VAC
Mobile/Stationary
Stationary
Watts
275
Motor Enclosure
Totally Enclosed Air Over
Width
27 in.
General
Air Velocity @ 10 Ft.
900 fpm
Fan Mounting Location
Pedestal
Air Velocity @ 20 Ft.
500 fpm
Max. Ambient Temp.
104 Degrees F
Air Velocity @ 40 Ft.
300 fpm
Oscillation
Oscillating
Air Velocity @ 60 Ft.
200 fpm
Shaft Dia.
5/8 in
Air Velocity @ 80 Ft.
100 fpm
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Nickel Chrome

Product Description

Standard-duty industrial pedestal fans cool heavy manufacturing areas and other dusty or dirty environments. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.

Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.

Item Barcode
9231722
Air Circulator,24",5548CFM,115
  Name Item Description
Grainger Dropship Grainger Dropship 15E710 AIR CIRCULAT OR, 24",5548
UNSPSC CODES UNSPSC CODES 40101602
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 AIR CIRCULAT OR, 24",5548
