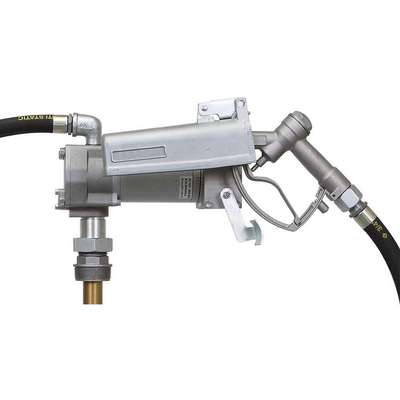

1/7 HP Aluminum Gear Fuel Transfer Pump, 20 GPM, 12VDC

Zoom Icon

#923117-1 | Pkg Qty: 1

$492.00 pkg | $492.00 ea
Item Number 923117-1
Scanner Description Fuel Transfer Pump,1/7 Hp,20
Inventory Status Drop Ship Item
Weight 31.68 lb
Brand DAYTON
California Proposition 65 Icon

Technical Specifications

Adapter Type
2 in. Threaded
Metered
No
Agency Compliance
UL & cUL
Mfg Part Number
12F725
Amps
15
Mounts
On 2 in. Bung
Amps AC
15
Nozzle Material
Aluminum
Application
Every day use in Agricultural , construction , automotive & industrial applications for quickly refueling Diesel & Gasoline powered vehicles
Nozzle Type
Manual
Brand
DAYTON
Outlet Size (In.)
1 in.
Bypass Valve
Internal
Outside Height
8-1/2 in.
Design
Gear Pump
Overall Length
12-1/2
Duty Cycle
30 min. On, 30 min. Off
Overall Width
10 in.
Features
Sintered Metal Gears , Very Good Suction , Quiet Operation , Easy to Install Swivel Bung , Strainer with Outside Access, Fuse with Outside Access, Swivel at Nozzle Inlet, Provision to Pad Lock , Pump Switches off when Nozzle Placed into Nozzle Holder
Pack Quantity
1
For Use With
Tank 55 gal. Drums
Power Cord Length
15 ft.
GPM
20
Pressure Range
10 psi
HP (Horsepower)
1/7
Pump Design
Gear
Height
8-1/2
RPM
1800
Hose Length
12 ft.
Seal
Hi Nitrile & Viton
Housing Material
Aluminum
Seal Material
Hi Nitrile & Viton
Includes
2 pc threaded Suction Tube , Hose , Power Cable , Bung & Nozzle
Self-Priming
Yes
Inlet Size (In.)
1 in.
Standards
UL & cUL
Item
Fuel Transfer Pump
Type
Fuel Transfer
Manufacturers Warranty Length
1 yr.
Voltage (V)
12VDC
Max. Viscosity
50 SSU
Width
10

Product Description

Rainproof and weatherproof for tough outdoor use, this DAYTON fuel transfer pump is lightweight with aluminum die-cast construction that resists corrosion. The geared pump design uses sintered metal gears that provide greater suction, minimal noise, and higher tolerance to contaminants. Model features an internal bypass valve to bypass flow if the discharge pressure exceeds the bypass valve setting. Pump has an intermittent duty cycle of 30 minutes ON, 30 minutes OFF.

Compliance & Restrictions

Prop 65 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
9231171
  Name Item Description
Grainger Dropship Grainger Dropship 12F725 Fuel Transfer
UNSPSC CODES UNSPSC CODES 40151532
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Fuel Transfer
