PARKER

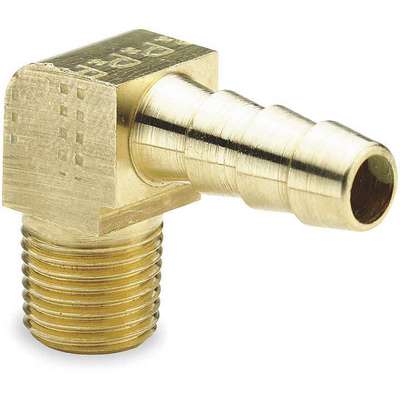

Barbed Hose Fitting: For 1/2 in Hose I.D., Hose Barb x NPT, 1/2 in x 1/2 in Fitting Size

Hover over image to magnify
Hose Barb,1/2 In Barb,1/2 In
Hose Barb,1/2 In Barb,1/2 In

#923113-8 | Pkg Qty: 1

$9.43 pkg | $9.43 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
scfm
Material
Brass
Barb Size
1/2
Material of Construction
Brass
Brand
PARKER
Maximum Pressure
150 psi
Clamp Type
Crimped or Hose Clamp
Mfr. Part Number
129HB-8-8
Fitting Style
90° Elbow
Package Quantity
1
For Hose Inside Diameter
1/2 in.
Shipping Weight
.25 lb.
Hole Diameter
3/8 in.
Thread Type
(M)NPT
Item
Hose Barbed Fitting
Type
Elbow
General
Application
Low Pressure Pneumatic and Water
For Hose I.D.
1/2 in
Fitting Connection Type
Hose Barb x NPT
Includes Shut Off
No
Fitting Gender
Male x Male
Nipple Grip Type
No Knurl

Product Description

Brass multipurpose rigid barbed hose fittings provide good strength, ductility, and corrosion resistance. They are more heat-resistant than 6061-T6 aluminum rigid barbed hose fittings. They have various connection types on one end with raised ridges (or barbs) on the other end that grip the inside of hoses to hold them in place. They are secured with a clamp or crimped ferrule for a leak-resistant seal.

Multipurpose rigid barbed hose fittings and menders connect hoses to pipe in multipurpose hose assemblies. They are also used to repair damaged hoses to help extend their life. These fittings have raised ridges (or barbs) that grip the insides of hoses to hold them in place and are secured with a clamp or crimped ferrule to form a tight seal. They are commonly used for low-pressure applications in the food and beverage, marine, and chemical processing industries to convey air, fluids, and chemicals through a pipe system.
