Home All Products Fluid Transfer & Pumps Fuel & Oil Transfer Fuel Transfer Pumps SKU: 923068-6
IPA

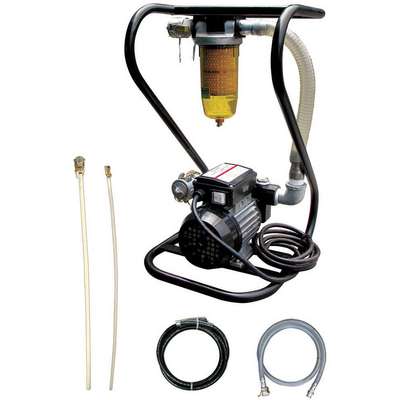

Fuel Transfer Pump: Fleet Tank Sweeper, 120 VAC, 20 GPM, 6 ft Hose Lg, Plastic, Manual, 1/3 HP

Hover over image to magnify
Fuel Transfer Pump, 20 Gpm
Fuel Transfer Pump, 20 Gpm

#923068-6 | Pkg Qty: 1

$1,795.56 pkg | $1,795.56 ea

Technical Specifications

Adapter Type
Quick Disconnect
Metered
No
Amps
6-1/2
Mfr. Part Number
9049
Amps AC
6-1/2
Nozzle Material
PEX
Application
Diesel/Fuel Oil
Nozzle Type
Manual
Brand
IPA
Outlet Size
3/4 in FNPT
Compatible Fluids
Diesel, Fuel Oil
Outside Height
20 in.
Duty Cycle
30 Min.
Overall Length
12 in.
Features
A preventative maintenance tool, Compact fuel transfer and filtration system which includes input and output hoses along with special attachments for accessing saddle tanks and 55 gallon drums, Includes hoses and quick disconnect fittings, Special wands included for accessing the bottom of the fuel tank, Water blocking filter with clear sight glass
Overall Width
13 in.
For Use With
Diesel/Fuel Oil
Pack Quantity
1
GPM
20 gpm
Power Cord Length
7-5/8 ft.
Horsepower
1/3
Pump Design
Rotary Vane
Hose Length
6 ft.
RPM
1725 and 1425
Hose Size
1" Input/ 3/4" Output
Seal Type
Lip
Housing Material
Plastic
Self-Priming
Yes
Includes
Filter Housing for Water Blocking 10 Micron Filter, 6 ft Long 1/2 in Black Output Hose,6 ft Long 3/4 in Black Intake Hose, 5 ft Long 1/2 in Diameter Flexible Output Wand, 5 ft Long 1/2 in Diameter Flexible Input Wand, Extra 10 Micron Water Blocking Filter
Shipping Weight
53-3/4 lb.
Inlet Size
1 in MNPT
Suction Tube Length
6 ft.
Item
Fleet Tank Sweeper
Type
Stationary
Manufacturers Warranty Length
2 yr
Voltage
120V AC

Product Description

Fuel transfer pump is used to clean and transfer diesel fuel, and can be used in various industries including agriculture, construction, stationary, automotive, fleet, MRO, residential, and commercial fuel oil. This preventative maintenance tool has a special wand for accessing the bottom of the fuel tank. Includes hoses, quick disconnect fittings, and a water blocking filter with clear sight glass.

Item Barcode
9230686
Fuel Transfer Pump, 20 Gpm
  Name Item Description
Grainger Dropship Grainger Dropship 18M464 Fuel Transfer
UNSPSC CODES UNSPSC CODES 40151532
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Fuel Transfer
