DAYTON

Dayton Single Function Time Delay Relay, 240VAC Coil Volts, 10A Contact Amp Rating (Resistive), Contact For

Hover over image to magnify

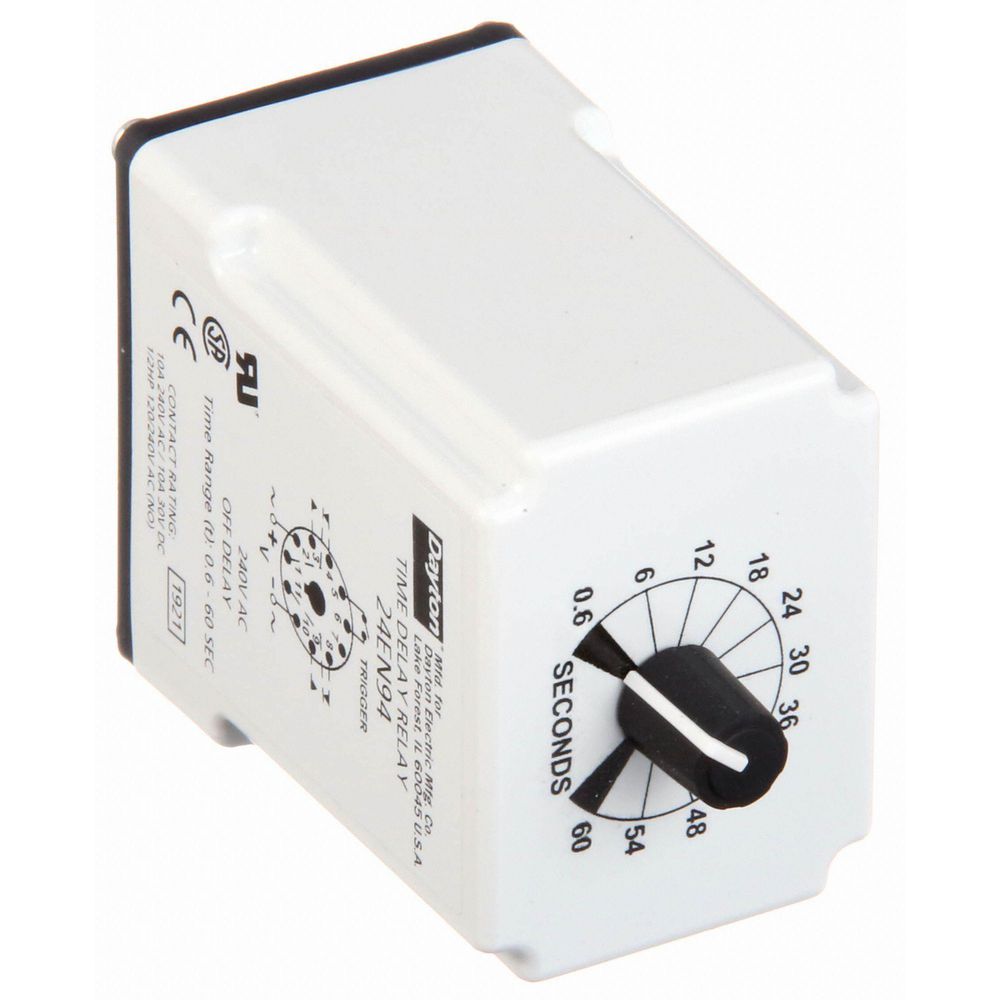

Time Delay Rlay,240VAC,10A,
PI_Asset_1355563
PI_Asset_1355564
Time Delay Rlay,240VAC,10A,
PI_Asset_1355563
PI_Asset_1355564
Dayton Single Function Time Delay Relay, 240VAC Coil Volts, 10A Contact Amp Rating (Resistive), Contact For Video

#923044-1 | Pkg Qty: 1

$105.55 pkg | $105.55 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 240 V
Item
Single Function Time Delay Relay
Adjustment Method
Potentiometer
Maximum Time Range
60 sec.
Base Type
Octal
Maximum Time Setting
60 sec.
Body Depth
1.7 in.
Mfr. Part Number
24EN94
Body Height
2.9 in.
Minimum Time Setting
0.60 sec.
Body Width
2.4 in.
Mounting
Plug In
Brand
DAYTON
Number of Contacts
2
Coil Rating
2VA
Number of Functions
1
Coil VA Rating
2
Number of Pins
11
Coil Volts
240 VAC
Number of Poles
2
Contact Form
DPDT
Operating Functions
2
Contact Material
Silver Nickel
Overall Height
3.1 in.
DC Contact Rating
10 A @ 30 V
Package Quantity
1
Electrical Connection
Socket
Pins
11
Function
Off Delay
Relay Power Consumption
2.0 VA
HP @ 120 V
1/2 - NO, 1/3 - NC
Resistive Contact Amp Rating
10A
HP @ 240 V
1/2 - NO, 1/3 - NC
Shipping Weight
.25 lb.
Hz
50/60
Socket
6X156, 1EGP2, 1EGP4
Input Power Consumption
2.0 VA
Socket Code
B
Input or Control Voltage
240 VAC
Status Indicator
None
General
AC Contact Rating - Relay
10A @ 240V
HP @ 240V
1/2 - NO, 1/3 - NC
Adjustment Method - Timer
Potentiometer
Hz - Electrical
50 Hz, 60 Hz
Base Type - Plug In Relay
Octal
Max. Time Setting - Timer
1 min
Body Depth - Relay
1.7 in
Min. Time Setting - Timer
0.6 sec
Body Height - Relay
2.9 in
Mounting - Relay
Plug In
Body Width - Relay
2.4 in
Number of Pins - Relay
11
Contact Form - Relay
DPDT
Overall Height - Relay
3.1 in
DC Contact Rating - Relay
10A @ 30V
Power Consumption - Relay
2 VA
Function - Timing Relay
Off Delay
Standards
UR, CSA, CE
HP @ 120V
1/2 - NO, 1/3 - NC
Timing Relay Functionality
Off Delay

Product Description

Dayton’s Time Delay Relay features an Off Delay function with an adjustable timing range of 0.6-60 seconds, 240V AC input voltage and 10A DPDT output contacts, utilizing an 11 pin octal socket.
