BRYANT

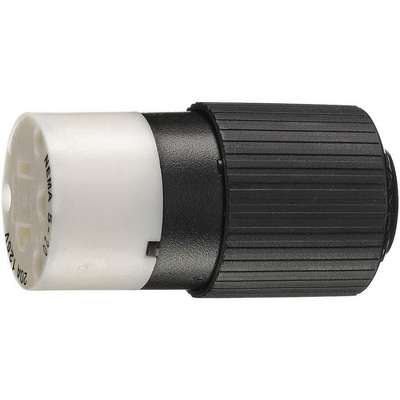

Bryant 20 Amp Industrial Grade Standard Straight Blade Connector, 5-20R NEMA Configuration, Black/White
Hover over image to magnify
#922955 | Pkg Qty: 1
$27.59 pkg | $27.59 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Minimum Operating Temperature
-40 °C
Amps
20 A
Minimum Wire Size
14 AWG
Antimicrobial
No
NEMA Configuration - Plugs & Connectors
5-20
Brand
BRYANT
NEMA Plug Configuration
5-20R
Color Family
Black / White
NEMA Receptacle Configuration
5-20R
Cord Size
0.245 in to 0.655 in
Number of Poles
2
Corrosion Resistant
No
Number of Wires
3
Current Rating
20 A
Overall Length
2.95 in.
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Single
For Maximum Cable Diameter
0.655 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.245 in.
Power Indicator
No
Grade
Industrial
Shipping Weight
.1 lb.
Grounding
Grounded
Shrouded
Yes
Housing Material
Nylon
Special Features
Dust Resistant
IP Rating
Not Rated
Standards
NEMA WD-1 and WD-5, UL 498
Item
Straight Blade Connector
Voltage
125VAC
Material
Nylon
Voltage Rating
125V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
10 AWG
Wiring Style
Standard
Mfr. Part Number
BRY5369NC
General
Amps - Plugs and Receptacles
20 A
Special Features
Dust Resistant
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-20R
Product Description
Designed with tough, impact- and chemical-resistant nylon housing. Features internal Triple Gripper® cord clamp that automatically centers the cord and secures it. Dust seal surrounds cord to help prevent moisture and contaminants from entering the wiring chamber
