PHILIPS ADVANCE

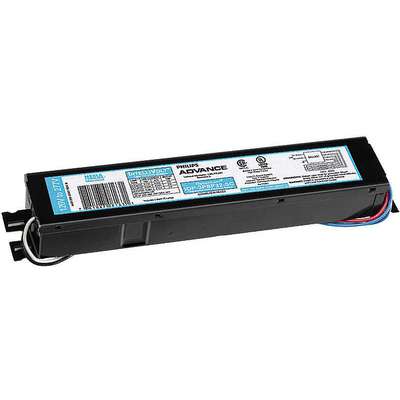

Philips Advance Electronic Ballast, 32 Max. Lamp Watts, 120-277 V, Programmed Start, No Dimming
Hover over image to magnify
#922942 | Pkg Qty: 1
$31.60 pkg | $31.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
0.17 to 0.40
Length
9-1/2 in.
Ballast Family
Optanium IOP
Light Output
Low
Ballast Type
Electronic
Mfr. Part Number
IOP-2PSP32-LW-N
Brand
PHILIPS ADVANCE
Number of Lamps
2
Dimming
No
Package Quantity
1
Dimming Type
No Dimming
Shipping Weight
.95 lb.
Height
1 in.
Start Type
Programmed
Item
Fluorescent Ballast
Voltage
120/277
Lamp Type
T8 Lamps
Width
1-5/16 in.
Lamp Watts
32 W
General
Ballast Bulb Type
T8
Number of F32T8 Lamps
1 or 2
Ballast Factor
0.89
Number of F32T8(26W) Lamps
1 or 2
Ballast Start Type
Programmed
Number of F32T8(28W) Lamps
1 or 2
Brand and Series
Optanium
Number of F32T8(30W) Lamps
1 or 2
Dimming Method
No Dimming
Number of F32T8U Lamps
1 or 2
Dimming Range
No Dimming
Number of F40T8 Lamps
1
Green Environmental
Product Contributes To Reducing Energy Consumption
Operating Amps @ 120V
0.48 A
Max. Bulb Watts
32 W
Power Factor
0.98
Min. Starting Temp.
0 Degrees F
Special Features
High Efficiency
Number of Bulbs Supported
1, 2
Starter Required
No
Number of F17T8 Lamps
1 or 2
Total Harmonic Distortion
Less Than 10%
Number of F25T8 Lamps
1 or 2
Wiring Type
Series
Number of F28T8 Lamps
2
Product Description
Electronic Ballasts
- Provide energy savings of up to 25% vs. magnetic models. RoHS compliant. Ballast Family Centium® NEMA Premium® instant-start ballasts are suitable for applications that do not have frequent switching cycles. Optanium® NEMA Premium® high-efficiency instant-start and programmed-start models feature lamp striation circuitry. Instant-start models feature lamp auto-restrike circuitry and cold-start capacity to -20°F when operating standard 17, 25, or 32W lamps. IOP instant-start models also feature the UL Type CC rating. (IOPA models do not have UL Type CC rating.) AmbiStar Compact design fits most fixtures and works with most incandescent dimmers. Quiet, flicker-free performance is great for most hospitality applications. Start Type Instant Fixtures with instant-start ballasts tend to come with factory-installed shunted sockets. Great for use when maximum energy savings are desired and when lamps are not switched frequently during normal operations. Lamps are wired in parallel. Rapid Rapid-start ballasts require nonshunted sockets. Great with frequent On/Off switching cycles. Programmed Premium starting method that affords optimal lamp life. Programmed-start ballasts require nonshunted sockets. Great for applications with frequent On/Off cycles. Light Output Ballast Factor (BF) Normal Typically 0.88 or 1.0 BF. High 1.15 to 1.25 BF.
Documents
Item Barcode
Electronic Ballast,F32T8 Lamps,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 13Y376 | Electronic Ballast, |
 | UNSPSC CODES | 39111801 | |
 | VMRS (ATA) CODES | 053-006-009 | Electronic Ballast, |
