Shielded Power Limited Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 2 (0 Pair)

Shielded Power Limited Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 2 (0 Pair)
Tray Cable,Shielded,18/2, 1000
Shielded Power Limited Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 2 (0 Pair) Video

#922915-8 | Pkg Qty: 1

$436.56 pkg | $436.56 ea
Item Number 922915-8
Scanner Description Tray Cable,Shielded,18/2, 1000
Inventory Status Drop Ship Item
Weight 28.45 lb
Brand CAROL

Technical Specifications

Application
Cable Tray Installations, Power Limited Circuits, Intercom Systems, Business Machines, Cash Registers, Industrial Control Systems, Petrochemical Refineries, Burglar Alarms, Suggested Voltage Rating 300 volts
Pack Quantity
1
Brand
CAROL
Package Type
Reel in a Box
Cable Type
Power-Limited
Shielded
Yes
Capacitance
51-1/2
Shielded/Unshielded
Shielded
Color Family
Gray
Shielding
100% Flexfoil
Communication Cable Application
Alarm Systems, Audio Systems, Control Systems
Shielding Material
Foil
Conductor Color Code Table Number
4
Solid / Stranded
Stranded
Conductor Size
18 AWG
Spool Length
1000 ft.
Conductor Type
Stranded
Spool/Coil Length
1000 ft.
Insulation
Premium Grade PVC
Standards
UL 70,000 BTU
Insulation Material
Premium Grade PVC
Stranding
16/30
Item
Power Limited Cable
Subcategory
Multi-Conductor
Jacket Color
Gray
Suggested Voltage Rating
300V
Jacket Color Family
Gray
Temperature Range
-4 deg. F to 221 deg. F
Jacket Material
PVC
Total Number of Conductors
2 (0 Pair)
Length
1000 ft.
Vertical Tray Flame Test
UL 70,000 BTU
Mfr. Part Number
C0454A.41.10
Voltage
300
NEC Article
725 PLTC
Wire Size
18 AWG
NEC Article/Type
725 PLTC
Wire/Cable Jacket Material
PVC
Nominal Outside Diameter
0.227 in.
Wire/Cable Size
18 AWG
Number of Conductors
2

Product Description

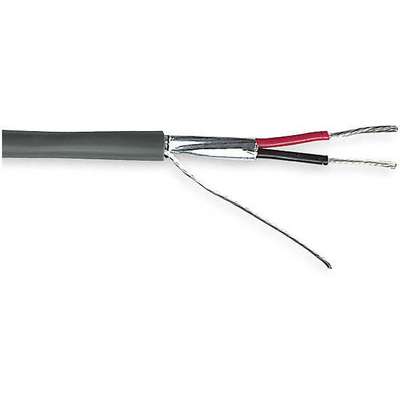

Electronic Power-Limited Tray Cable (PLTC)

  • UL 70,000 Btu Vertical Tray Flame Test temperature range: -4° to 221°F Resists sunlight Stranded conductors Gray PVC jacket Rated for 300V
  • Shielded cable has aluminum/polyester Flexfoil® shield with a 25% overlap and outward-facing foil. Premium-grade PVC insulation is color-coded. Suitable for burglar alarms, intercom systems, cash registers, and equipment control circuits.
Item Barcode
9229158
  Name Item Description
Grainger Dropship Grainger Dropship 4DPC7 Tray Cable, Shielded,18/
UNSPSC CODES UNSPSC CODES 26121629
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Tray Cable, Shielded,18/
