SPEEDAIRE

235 psi Standard Carbon Filter

Hover over image to magnify

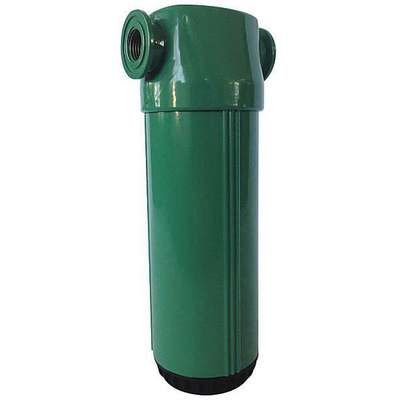

Filter Carbon,1/2" NPT,235 PSI
Filter Carbon,1/2" NPT,235 PSI

#922913-7 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Hex Bushing,3/4 x 1/2 In.,Mnpt
$2.87 pkg | $2.87 ea
Item: 925605
Pkg Qty: 1
Filter,3/4" NPT,88 Cfm,0.01
$430.29 pkg | $430.29 ea
Item: 930645-2
Pkg Qty: 1

Technical Specifications

Key Specifications
Air Consumption
scfm
Maximum Pressure
235 psi
Bowl Material
Aluminum
Maximum Temperature
122 deg. F
Brand
SPEEDAIRE
Mfr. Part Number
35GN38
Drain Port Size
5/8 in.
Microns
0.01
Drain Type
Float
Overall Height
12 in.
Filter Rating
0.01 micron
Overall Width
7 in.
Fits
1/2 in. Filter-Activated Carbon
Package Quantity
1
Flow Rate
88 cfm
Pipe Size
1/2 in. NPT
Housing Material
Aluminum
Shipping Weight
6 lb.
Item
Filter Carbon
Type
Compressed Air Filter
Maximum Flow
88 cfm
General
Air Inlet Type
NPT
For Removal Of
Odor, Oil Vapor
Air Outlet Size
1/2 in
For Substance Type
Odor, Oil Vapor
Air Outlet Type
NPT
Gauge Included
Yes
Bowl Material - Air Treatment
Aluminum
Max. Flow - Air Treatment
88 cfm
Connection Size - Air Treatment
1/2 in NPT
Max. Flow Range - Air Treatment
71 to 100 cfm
Differential Pressure Indicator Included
Yes
Max. Incoming Pressure - Air Treatment
235 psi
Filter Bowl Material
Aluminum
Number of Air Inlets
1
Filter Element Material
Carbon
Number of Air Outlets
1
Filter Media
Carbon
Size - Air Treatment
Standard
Filter Rating - Air Treatment
0.01 micron
Tie Rod Included
Yes
For Fluid Type
Oil

Product Description

Efficiently removes oil, oil vapor, particulates, water, and other contaminants. Filter uses a threaded post-mounted element. Not intended for removing carbon dioxide or carbon monoxide.

Item Barcode
9229137
Filter Carbon,1/2" NPT,235 PSI
