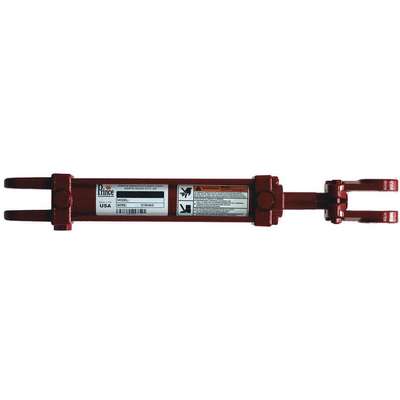

Double Acting Tie Rod Hydraulic Cylinder; 4 Bore Dia. (In.), 8 Stroke (In.)

Hover over image to magnify
Cylinder,Hyd,4 In Bore x 8 In
Cylinder,Hyd,4 In Bore x 8 In

#922810-6 | Pkg Qty: 1

$589.09 pkg | $589.09 ea

Technical Specifications

Key Specifications
Hydraulic Cylinder
Pins and Retainers
Pack Quantity
Bore Dia.
4 in
Ring Material
Rubber O-Ring
Column Load
Full PSI
Rod Dia.
1 1/2 in
Cylinder Style
Rod Seal Type
Urethane U-Cup
Max. Pressure
2,500 psi
Rod Thread Size
Pin Dia.
1 in
Single Acting/Double Acting
Double Acting
Piston Rod Material
Chrome Plated
Tie Rods
Piston Seal Type
O-Ring and Back-Up

Product Description

Standard-duty tie-rod hydraulic cylinders are double-acting steel cylinders rated to 2500 psi. They are slightly smaller than heavy-duty cylinders. They provide power in both push and pull directions, allowing for more precise positioning than single-acting cylinders. The hard chrome-plated case-hardened steel rod provides smooth movement and a long service life.

Tie-rod hydraulic cylinders are have four rods (bolts) that connect the ends of a double-acting hydraulic cylinder to add strength and stability to the cylinder and prevent it from coming apart under pressure. Double-acting tie-rod hydraulic cylinders provide power in both directions (extending and retracting), which allows for more precise movement. They have a linear actuator and are used in agricultural equipment, industrial machinery, and construction equipment to support, lift, and press heavy loads. Seals can be replaced as needed to keep cylinders in good working order. Clevis mounts on both ends allow the cylinder to be mounted directly to the equipment. The rod end has a clevis attachment that is welded to the body for strength and stability. The piston-side end cap has a clevis bracket for attaching to equipment.

Item Barcode
Cylinder,Hyd,4 In Bore x 8 In
  Name Item Description
Grainger Dropship Grainger Dropship 4Z192 Cylinder,hyd, 4 In Bore x
VMRS (ATA) CODES VMRS (ATA) CODES 269-009-000 Cylinder,hyd, 4 In Bore x
