TRAMEC SLOAN

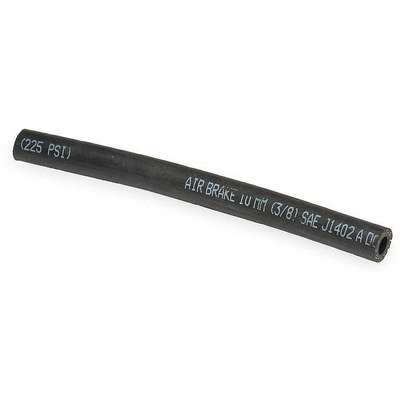

25 Ft. Synthetic Rubber Air Brake Hose. 3/8 in. I.D., Black

Hover over image to magnify
Air Brake Hose,3/4 In Od,Blk
Air Brake Hose,3/4 In Od,Blk
25 Ft. Synthetic Rubber Air Brake Hose. 3/8 in. I.D., Black Video

#922754-2 | Pkg Qty: 1

$118.39 pkg | $118.39 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Brake Hose and Nylon Tubing Type
Air Brake Hose
Length
25 ft.
Brand
TRAMEC SLOAN
Material
Synthetic Ruber
Color Family
Black
Mfr. Part Number
2ZJE7
Hose Inside Diameter
3/8 in.
Package Quantity
1
Hose Length
25 ft.
Shipping Weight
6.05 lb.
Inside Diameter
3/8 in.
Working Pressure
225 psi
Item
Air Brake Hose
General
Compatible Chemicals
Air, Fresh Water
Hose Tube Material
EPDM
For Media Type
Air, Water
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Xylene
Hose Configuration
Bulk Hose
Standards
SAE J844, TYPE 3B and DOT FMVSS 106
Hose Cover Material
EPDM
Temp. Range
-40 Degrees to 200 Degrees F

Product Description

EPDM (ethylene propylene diene monomer) bulk air-brake hoses provide excellent resistance to high temperatures and kinking. These hoses are used to create custom-length air-brake lines on commercial trucks, over-the-road vehicles, and medium-duty trucks.

Bulk air-brake hoses are used to create custom-length air-brake lines on commercial trucks, over-the-road vehicles, and medium duty trucks. Also called air-brake tubing, these flexible hoses connect to rigid lines in the brake system to allow movement and absorb vibration in the brake lines. They can be cut to the desired length, and compatible hose fittings can be added to the ends of the hoses to create custom hose assemblies.

Item Barcode
9227542
Air Brake Hose,3/4 In Od,Blk
 NameItemDescription
Grainger DropshipGrainger Dropship2ZJE7Air Brake Hose,3/4 In
UNSPSC CODESUNSPSC CODES25171702
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Air Brake Hose,3/4 In

For more product information by email, click here
