DAYTON

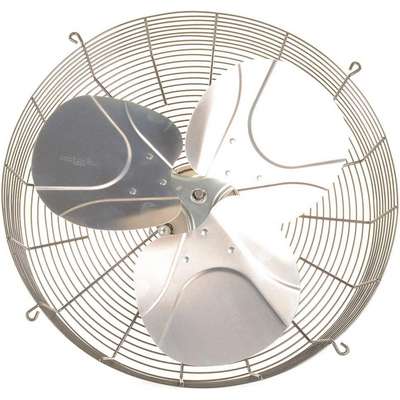

Dayton 20" Blade Dia. 1/4 HP Guard Mounted Exhaust Fan, 1725 Motor RPM

Hover over image to magnify
Exhaust Fan,20 In,115V,3960 Cfm
Exhaust Fan,20 In,115V,3960 Cfm

#922749 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Agency Compliance
UL-CUL E53236
Motor Type
PSC
Bearing Type
Ball
Mounting Position
Horizontal or Vertical
Blade Diameter
20 in.
Number of Blades
3
Blade Material
Stamped Aluminum
Outside Diameter
22-1/2 in.
Brand
DAYTON
Pack Quantity
1
Item
Guard Mounted Exhaust Fan
Phase
1
Mfr. Part Number
1HKL7
Shipping Weight
25 lb.
Motor Enclosure
Totally Enclosed Air-Over
Voltage
115 VAC
Motor HP
1/4
General
Exhaust Airflow @ 0.000 in SP
3,960 cfm
Maximum Noise Level
7.3 sones
Exhaust Airflow @ 0.125 in SP
2,360 cfm
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Fan Style
Guard-Mounted
Motor Horsepower
1/4 hp
Fan Voltage
115V AC
Motor Speed
1,725 RPM
Guard Finish
Polyester
Nameplate Voltage
115V AC
Includes
Junction Box, Leads, Wiring
Noise Level @ 0.000 in SP @ 5 ft
7.3 sones
Includes Motor
Yes
Ventilation Type
Exhaust
Maximum Ambient Operating Temperature
104 Degrees F

Product Description

Guard- and Ring-Mount Exhaust Fans

  • Mount: vertical or horizontal Motors: totally enclosed, 115V, 60 Hz, thermally protected
  • Max. inlet/ambient temp.: 104°F
  • Designed for low-pressure exhausting and cooling applications. Automatic shutter is recommended; see Index under "Shutters, Fan". C-
