SIMPSON STRONG-TIE ANCHOR SYSTEMS

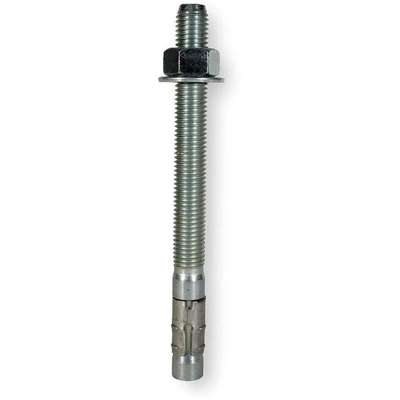

5" Steel Mechanical Wedge Anchor, 5/8" Anchor Dia., Zinc Plated, 20PK
Hover over image to magnify
#922736-7 | Pkg Qty: 20
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Agency Compliance
ICC-ES ESR-3037
Material Grade/Class
Not Graded
Anchor Diameter
5/8 in.
Maximum Work Thickness
1 in.
Anchor Length
5 in.
Mfr. Part Number
STB2-62500-G20
Basic Material
Steel
Minimum Embedment
3-3/8 in.
Brand
SIMPSON STRONG-TIE ANCHOR SYSTEMS
Package Quantity
20
Fastener Finish
Zinc Plated
Seismic Approved
Yes
ICC Approved for Cracked Concrete
Yes
Shipping Weight
9.46 lb.
ICC Approved for Un-Cracked Concrete
Yes
Thread Length
2-15/16 in.
Item
Wedge Anchor
Thread Size
5/8"-11
Material
Carbon Steel
General
Allowable Shear in 2500 PSI Cracked Concrete (Lbs.)
3665
Allowable Tension in 2500 PSI Cracked Concrete (Lbs.)
1700
Allowable Shear in 2500 PSI Uncracked Concrete (Lbs.)
4845
Allowable Tension in 2500 PSI Uncracked Concrete (Lbs.)
2405
Allowable Shear in 6500 PSI Cracked Concrete (Lbs.)
4845
Allowable Tension in 6500 PSI Cracked Concrete (Lbs.)
2745
Allowable Shear in 6500 PSI Uncracked Concrete (Lbs.)
4845
Allowable Tension in 6500 PSI Uncracked Concrete (Lbs.)
3875
Product Description
Strong-Bolt® 2 Seismic Wedge Anchors
- Category 1 Anchor Classification Static tension and shear loading in cracked and uncracked concrete Use in all structural applications, including racking, equipment shelving, bracing, and seating. Use in static, seismic, and wind loading applications. Comply with IBC 2012, 2009, 2006, and 2003 requirements. ICC-ES ESR-3037. City of Los Angeles RR25891. Tested per ACI 355.2 and ICC-ES AC193 to meet current cracked concrete anchor codes.
Item Barcode
Wedge Anchor,Stl,5/8-11x5 In L,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 13A987 | Wedge Anchor, Stl,5/8-11x5 |
 | UNSPSC CODES | 31162102 | |
 | VMRS (ATA) CODES | 053-006-009 | Wedge Anchor, Stl,5/8-11x5 |
