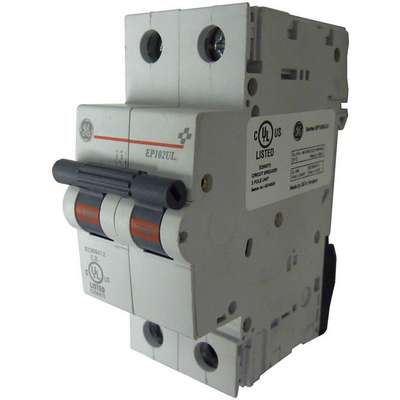

IEC Supplementary Protector, 40 Amps, Number of Poles: 2, 277/480VAC AC Voltage Rating

IEC Supplementary Protector, 40 Amps, Number of Poles: 2, 277/480VAC AC Voltage Rating

#922730-2 | Pkg Qty: 1

$156.00 pkg | $156.00 ea
Item Number 922730-2
Scanner Description Supp Protectr,40A,2P,D,277/
Inventory Status Drop Ship Item
Weight 0.62 lb
Brand GENERAL ELECTRIC

Technical Specifications

AC Voltage Rating
277/480VAC
Low Amp Trip Setting
560
AIR @ 277VAC
6kA
Max. AIR Rating
6 kA
AIR @ 48VDC
6kA
Max. DC Voltage (V)
110
Air @ 120VAC
6kA
Max. Wire Size
8 AWG
Air @ 125VDC
6kA
Mfr. Part Number
EP62ULD40
Air @ 240VAC
6kA
Min. Wire Size
14 AWG
Air @ 480VAC
6.0kA
Mounting
DIN Rail
Air @ 600VAC
6kA
Mounting Type
DIN
Air @ 65VDC
6kA
Number of Poles
2
Amperage (A)
40
Pack Quantity
1
Amps
40
Phase
1
Application
Supplemental Protection
Phase Connection
Any
Brand
GENERAL ELECTRIC
Series
EP60UL
Circuit Breaker Type
Miniature UL 1077
Standards
UL 1077, CSA C22.2 No. 235-1989 (File E151139), VDE, cURus, CE, CEBEC, KEMA EUR
Curve Type
D
Switch Type
Toggle
DC Voltage Rating
110VDC
Terminal Connection
Screw Clamp
Depth
76 mm
Trip Type
Thermal Magnetic
High Amp Trip Setting
560
Type
Din Rail Mount
Instantaneous Trip
Fixed
Voltage
480 VAC
Item
IEC Supplementary Protector
Width
36 mm
Length
86 mm

Product Description

The D Curve indicates a magnetic trip between 10 and 14 times the rated current.

Item Barcode
9227302
  Name Item Description
Grainger Dropship Grainger Dropship 10K609 Supp Protectr,40A,
UNSPSC CODES UNSPSC CODES 39121601
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Supp Protectr,40A,
