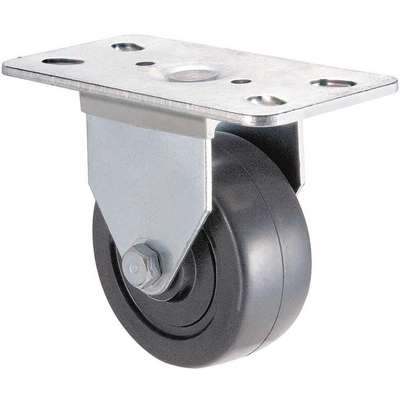

Standard Plate Caster, Rigid, Rubber, 175 lb., 2-1/2" Wheel Dia.

Hover over image to magnify
Rgd Plate Castr,Rubbr,2-1/2 In.
PI_Asset_947818
Rgd Plate Castr,Rubbr,2-1/2 In.
PI_Asset_947818

#922699-6 | Pkg Qty: 1

$6.11 pkg | $6.11 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
175 lb.
Caster Brake Included
No
Mfr. Part Number
1UKV2
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
5/16 in.
Caster Core Material
Rubber
Mounting Height
3-7/16 in.
Caster Load Rating Range
Light Duty
Non-Marking
No
Caster Plate Hole Pattern
A
Number of Mounting Holes
4
Caster Plate Size
2-1/2 in. x 4-15/16 in.
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
1-3/16 in. x 4 in.
Caster Wheel Bearings
Delrin
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Rigid
Caster Wheel/Tread Material
Rubber
Shipping Weight
1.27 lb.
Core Color
Black
Swivel Construction
Kingpinless
Durometer
70 Shore D
Wheel Color
Black
Frame Finish
Zinc Plated
Wheel Diameter
2-1/2 in.
Frame Material
Steel
Wheel Width
1-1/4 in.
Inside Bolt Hole Spacing
1-1/16 in. x 3-15/32 in.
Wheel/Tread Hardness Rating
Hard
Item
Standard Plate Caster
General
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Caster Plate Thickness
5/32"
Thread Guards
No
Caster Product Group
Rigid Caster
Tread Shape
Standard
Caster Temp. Range Available
No
Wheel Bearing Type
Delrin
Load Rating Range
0 to 299 lb
Wheel Core Material
Rubber
Mounting Bolt Dia.
5/16 in
Wheel Dia.
2 1/2 in
Mounting Plate Bolt Hole Pattern
A
Wheel/Tread Hardness
70 Shore D
Mounting Plate Size
2 1/2 in x 4 15/16 in
Wheel/Tread Material
Rubber
Mounting Plate Size (Bolt Hole Pattern)
2 1/2 in x 4 15/16 in (A)

Product Description

Light-duty standard plate casters are installed onto the bottom of carts, dollies, business machines, store fixtures, food-service equipment, and other equipment that will be moved manually at moderate speeds. These casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as in offices, retail stores, schools, and government buildings. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
