DAYTON

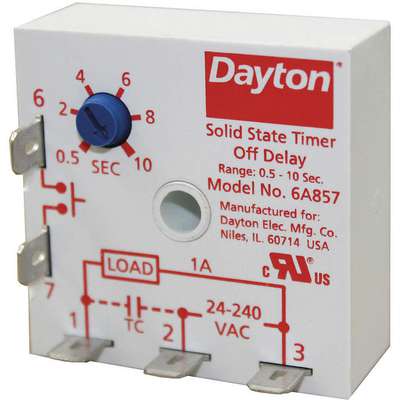

Dayton Single Function Encapsulated Timing Relay, Function: Off Delay, Status Indicator: None, 1A Contact A
Hover over image to magnify
#922692-4 | Pkg Qty: 1
$34.26 pkg | $34.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
1.00 A @ 120 V
Minimum Time Setting
0.5 sec.
Adjustment Method
Potentiometer
Mounting
Surface
Base Type
Bolt Down
Number of Contacts
1
Body Depth
2 in.
Number of Functions
1
Body Height
0.79 in.
Number of Pins
5
Body Width
2 in.
Operating Functions
2
Brand
DAYTON
Output
Solid State
Coil Volts
24 to 240 VAC
Overall Height
1.14 in.
Contact Form
SPST-NO
Package Quantity
1
Function
Off Delay
Pins
5
Hz
50/60
Resistive Contact Amp Rating
1A
Input Voltage
24 to 240 VAC
Shipping Weight
.25 lb.
Input or Control Voltage
24 to 240 VAC
Status Indicator
None
Item
Single Function Encapsulated Timing Relay
Timing Range
0.50 sec. to 10.00 sec.
Maximum Time Setting
10 sec.
Type
Solid State Output
Mfr. Part Number
6A857
Type of Output
Solid State
General
AC Contact Rating - Relay
1.00A @ 120V
Max. Time Setting - Timer
10 sec
Adjustment Method - Timer
Potentiometer
Min. Time Setting - Timer
0.5 sec
Body Depth - Relay
2.0 in
Mounting - Relay
Surface
Body Height - Relay
0.79 in
Number of Pins - Relay
5
Body Width - Relay
2.0 in
Overall Height - Relay
1.14 in
Contact Form - Relay
SPST-NO
Standards
cURus
Function - Timing Relay
Off Delay
Timer Range
0.50 sec. to 10.00 sec.
Hz - Electrical
50 Hz, 60 Hz
Product Description
The encapsulated time delay relay features an Off Delay function with a timing range of 0.5-10 second and input voltage of 24-240V AC. The 1A solid state output is perfect for high duty cycle/long life applications. Terminations are 0.25” male quick-connect terminals.
