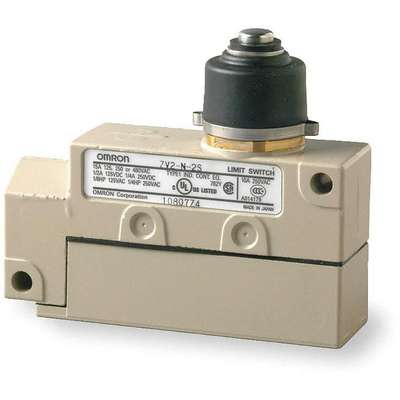

Plunger General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Top Movement

Plunger General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Top Movement

#922682-8 | Pkg Qty: 1

$74.46 pkg | $74.46 ea
Item Number 922682-8
Scanner Description Enclosed Limit Switch
Inventory Status Drop Ship Item
Weight 0.45 lb
Brand OMRON

Technical Specifications

AC Contact Rating
10A @ 480V
IP Rating
65
Actuator Location
Top
Item
General Purpose Limit Switch
Actuator Style
Plunger, Boot Sealed
Limit Switch Style
General Purpose Limit Switch
Amperage
15/15/10
Mfr. Part Number
ZV2N2S
Amps
15/15/10
Movement
Top
Basic Actuator Style
Plunger
NEMA Rating
1, 2, 3, 4, 5
Body Depth
1 in.
Operating Force
7.9N-m
Body Height
1.3 in.
Operating Temperature Range
14° to 176°F
Body Material
Aluminum
Pack Quantity
1
Body Style
Micro
Series
ZV2
Body Width
3.39 in.
Standards
UL, CSA
Boot Sealed Actuator
Yes
Style
Sealed Plunger
Brand
OMRON
Threaded for Panel Mounting
No
Contact Form
SPDT
Travel
Maximum Pre-Travel 2 mm, Minimum Over-Travel 5 mm
DC Contact Rating
Not Rated
Type
Diagonal Mount
Depth
3.39 in.
Voltage
480 VAC
Electrical Connection
Screw Terminals
Voltage Rating
480VAC
Hazardous Location
No
Width
1 in.
Height
2.81 in.
Wiring Entry
G1/2

Product Description

This general purpose, enclosed limit switch is engineered to offer both high breaking capacity and high durability.
