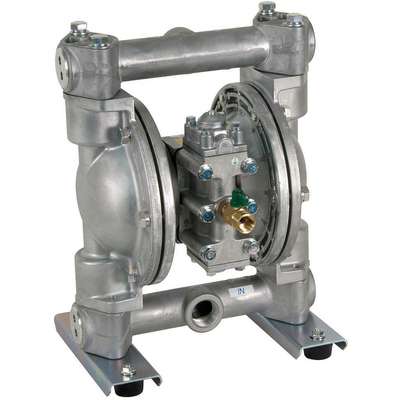

Double Diaphragm Pump, 46 gpm Max. Flow, Buna N, 3/8" FNPT

Double Diaphragm Pump, 46 gpm Max. Flow, Buna N, 3/8" FNPT

#922674 | Pkg Qty: 1

$1,334.24 pkg | $1,334.24 ea
Item Number 922674
Scanner Description Double Diaphragm Pump,NPT
Inventory Status Drop Ship Item
Weight 30.4 lb
Brand DAYTON

Technical Specifications

Air Inlet Size
3/8 in. FNPT
Manufacturers Warranty Length
1 yr.
Ball Material
Buna N
Maximum Diameter Solids
3/16 in.
Body Material
Aluminum
Maximum Flow
46 gpm
Brand
DAYTON
Maximum Flow (GPM)
46
Check Seat Material
Aluminum
Maximum Operating PSI
100
Connection Style
NPT
Maximum Operating Pressure
100 psi
Diaphragm Design
Buna N
Maximum Temperature (Deg. F)
180°F
Diaphragm Material
Buna N
Mfr. Part Number
22A593
For Use With
Pumps are Fully Groundable to Prevent Static Discharge. CSA Certified for Operation Using Natural Gas. A Primary Application is for Use In Circulating Gylcol, Coolants and Petroleum Based Fluids.
Operation Type
Natural Gas Operated
Height
15-1/8 in.
Ounces per Stroke
14.08
Housing Material
Aluminum
Pack Quantity
1
Includes
Ball Valve and Manual
Pump Operation Type
Natural Gas Operated
Inlet/Outlet
1 in.
Self-Priming Dry
18 ft.
Inlet/Outlet Size
1 in.
Self-Priming Wet
28 ft.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
8-1/2 in.
Width
11-1/4 in.

Product Description

Dayton Air-Operated Diaphragm Pumps are the most versatile pumps on the market. They are used in a wide variety of applications including general pump transfer, recirculation, dispensing, spraying, filling, rough metering dewatering, low shearing transfer, and evacuation. They are self-priming, dry running, portable, and intrinsically safe. They cannot overheat and can achieve a variable flow rate to match the application requirement. They can be used for a wide variety of liquids from acids, caustics, and solvents to high viscosity shear sensitive liquids including paints, inks, and adhesives, to abrasives and slurries (please consult liquid manufacturer for compatibility with pump materials of construction). Dayton CSA Pumps are listed with CSA International and certified to run on sweet natural gas.

Item Barcode
9226740
  Name Item Description
Grainger Dropship Grainger Dropship 22A593 Double Diaphragm
UNSPSC CODES UNSPSC CODES 40151548
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Double Diaphragm
