SPEEDAIRE

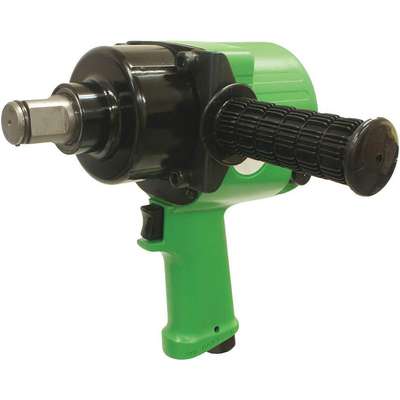

General Duty Air Impact Wrench, 1" Square Drive Size 200 to 800 ft.-lb.

Hover over image to magnify
Air Impact Wrench,Friction
Air Impact Wrench,Friction

#922580-1 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Air Impact Wrench,1 In. Dr.,
$1,077.56 pkg | $1,077.56 ea
Item: 912632-3
Pkg Qty: 1

Technical Specifications

Key Specifications
Air Consumption
scfm
Item
Air Impact Wrench
Air Inlet Size
3/8 in. NPT
Maximum Bolt Capacity
1-1/4 in.
Air Tool Body Style
Pistol
Maximum Torque
1200 ft.-lb.
Air Tool Drive Size
1 in. Square
Mfr. Part Number
45NW58
Air Tool Retainer Type
Ring/ Thru Hole
Minimum Hose Size
1/2 in.
Anvil
Standard
Overall Length
8-3/4 in.
Anvil Length
1.500 in.
Pack Quantity
1
Avg CFM @ 15 Sec Run Time
7-1/2
Required Pressure
90 psi
Blows per Minute
750
Retainer
RING
Brand
SPEEDAIRE
Retainer Type
Ring/Thru Hole
CFM @ Full Load
30
Shipping Weight
14.3 lb.
Duty
General Duty
Square Drive Size
1 in.
Free Speed
5500 RPM
Style
Pistol Grip
Handle Material
Aluminum Cast
Tool Weight
13.6 lb.
Handle Type
Pistol Grip
Torque Range
200 to 1200 ft.-lb.
Housing Material
Aluminum Cast
General
Air Pressure
90 psi
Max. Air Pressure
90 psi
Extended Anvil Length
1 1/2 in
Min. Air Pressure
70 psi

Product Description

These pistol-grip air-powered impact wrenches have a square drive and a standard anvil length. They are full-size impact wrenches with high torque output. The pistol grip has a trigger that is pressed to activate the wrench. Pistol grips provide ergonomic handling when working on vertical surfaces from the user's waist to chest, horizontal surfaces at mid-thigh or lower, and horizontal surfaces directly overhead.

Expertly Selected Product Pairings

Air Tool Cleaner And
$9.49 pkg | $9.49 ea
Item: 916546-2 | Pkg Qty: 1
Air Tool Lube, 16 Oz.
$6.97 pkg | $6.97 ea
Item: 933354-8 | Pkg Qty: 1
