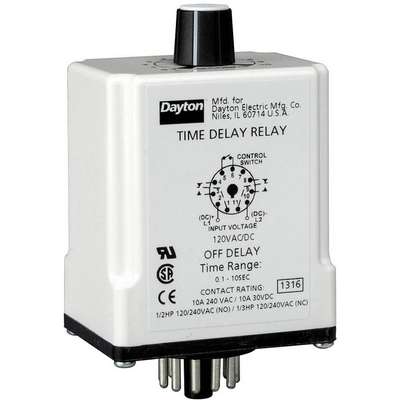

Dayton Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact

Hover over image to magnify
Time Dlay Rlay,120VAC/Dc,10A,
PI_Asset_1355354
PI_Asset_1355355
Time Dlay Rlay,120VAC/Dc,10A,
PI_Asset_1355354
PI_Asset_1355355
Dayton Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact Video

#922561-8 | Pkg Qty: 1

$46.97 pkg | $46.97 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 240 V
Maximum Time Setting
15 min.
Adjustment Method
Potentiometer
Mfr. Part Number
1EGC4
Base Type
Octal
Minimum Time Setting
9.00 sec.
Body Depth
1.7 in.
Mounting
Plug In
Body Height
2.9 in.
Number of Contacts
2
Body Width
2.4 in.
Number of Functions
1
Brand
DAYTON
Number of Pins
11
Coil Rating
2VA
Number of Poles
2
Coil VA Rating
2
Operating Functions
2
Coil Volts
120 VAC/DC
Overall Height
3.1 in.
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Nickel
Pins
11
DC Contact Rating
10 A @ 30 V
Relay Power Consumption
2.5 VA, 2.0 W
Electrical Connection
Socket
Resistive Contact Amp Rating
10A
Function
Off Delay
Shipping Weight
.32 lb.
Hz
50/60
Socket
6X156, 1EGP2, 1EGP4
Input Power Consumption
2.5 VA, 2.0 W
Socket Code
B
Input or Control Voltage
120 VAC/DC
Status Indicator
None
Item
Single Function Time Delay Relay
Type
Plug-In
General
AC Contact Rating - Relay
10A @ 240V
HP @ 240V
1/2
Adjustment Method - Timer
Potentiometer
Hz - Electrical
50 Hz, 60 Hz
Base Type - Plug In Relay
Octal
Max. Time Setting - Timer
15 min
Body Depth - Relay
1.7 in
Min. Time Setting - Timer
9 sec
Body Height - Relay
2.9 in
Mounting - Relay
Plug In
Body Width - Relay
2.4 in
Number of Pins - Relay
11
Contact Form - Relay
DPDT
Overall Height - Relay
3.1 in
DC Contact Rating - Relay
10A @ 30V
Power Consumption - Relay
2 W, 2.5 VA
Function - Timing Relay
Off Delay
Standards
UR, CSA, CE
HP @ 120V
1/3
Timing Relay Functionality
Off Delay

Product Description

Dayton’s Time Delay Relay features an Off Delay function with an adjustable timing range of 9-900 seconds, 120V AC/DC input voltage and 10A DPDT output contacts, utilizing an 11 pin octal socket.
