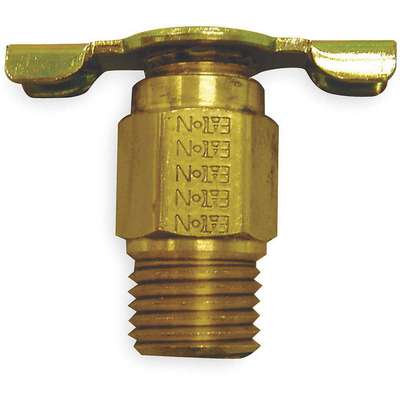

MNPT Drain Cock, 150 psi, 1-5/32"H x 1/8" Pipe Size

Item Number	922517-1
Scanner Description	Drain Cock,Brass,Mnpt,1/8 In
Weight	0.09 lb
Brand	ANDERSON METALS

Pkg Qty: 1

$5.69 pkg | $5.69 ea

Technical Specifications


Body Material	Brass	Item	Drain Cock
Body Style	Inline	Max. Working Pressure	150 psi
Brand	ANDERSON METALS	Mfg Part Number	130
Connection Type	MNPT	Overall Height	1-5/32 in.
Handle Material	Steel	Pack Quantity	1
Handle Type	Wing	Pipe Size	1/8 in.
Hex Size	17/32 in.	Standards	ASME 1016
Internal/External	Internal	Temperature Range (Deg F)	-65 to 250 deg. F

Product Description

Shipping Weight 0.09 lbs.

Country of Origin USA Country of Origin is subject to change.

Technical Specs

Item Drain Cock
Seat Position Internal
Body Material - Valves Brass
Pipe Size - Valves 1/8"
Connection Type MNPT
Max. Pressure 150 psi
Temp. Range -65 Degrees to 250 Degrees F

Overall Height 1-5/32"
Handle Material Steel
Handle Type Wing
Hex Size 17/32"
Body Style Inline
Standards ASME 1016

Documents

Item Barcode

Cross References
Legal

Name	Item	Description
Grainger Dropship	1VPX6
UNSPSC CODES	40141617
VMRS (ATA) CODES	053-008-004	Drain Cock, Brass,MNPT,1/
