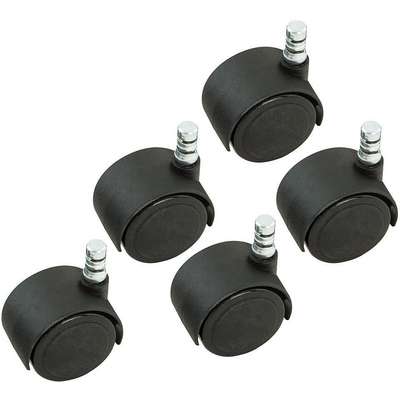

Light- Medium Duty Friction-Ring Stem Caster Kit; 550 lb. Load Rating, 2" Wheel Dia.

Hover over image to magnify
Twin Whl Swvl Cstr,Polyurethn,
PI_Asset_1353430
Twin Whl Swvl Cstr,Polyurethn,
PI_Asset_1353430

#922488-2 | Pkg Qty: 5

$40.45 pkg | $8.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
64328
Caster Brake Included
No
Mounting Height
2-7/16 in.
Caster Brake Type
No Brake Included
Non-Marking
Yes
Caster Load Rating Range
Light- Medium Duty
Number of Wheels
2
Caster Stem Type
Friction Ring
Overall Height
2-7/16 in.
Caster Sub-Type
Swivel
Package Quantity
5
Caster Wheel Bearings
Plain
Shipping Weight
1.29 lb.
Caster Wheel/Tread Material
Polyurethane
Stem Diameter
7/16 in.
Core Color
Black
Stem Length
7/8 in.
Core Material
Nylon
Wheel Color
Black
Frame Material
Nylon
Wheel Diameter
2 in.
Item
Friction-Ring Stem Caster Kit
Wheel Width
1/2 in.
Load Rating
550 lb.
General
Application
Office Chairs and Furniture
Load Rating Range
300 to 999 lb
Barrel Dia.
7/16"
Stem Dia.
7/16 in
Caster Frame Material
Nylon
Tread Shape
Twin Wheel
Caster Mounting Type
Stem
Wheel Bearing Type
Plain
Caster Product Group
Swivel Caster
Wheel Core Material
Nylon
Caster Stem Size
7/16 in x 7/8 in
Wheel Dia.
2 in
Features
Soft Tread for Hard Surfaces
Wheel/Tread Material
Polyurethane
Includes
(5) Casters

Product Description

These friction-ring stem caster kits come with multiple casters and are used for applications where all the casters on a piece of office furniture or equipment need to be replaced. These casters are installed on chairs, carts, fixtures, and similar items used in environments where the casters won't be exposed to heavy loads, chemicals, liquids, or high temperatures, such as offices and retail settings. Soft-wheel casters are less likely to damage hard tile or wood floors than hard-wheel casters, and hard-wheel casters won't grab or snag carpets. Each kit's load rating is the sum of the load ratings for all the casters in the kit. For example, if each caster in the kit has a load rating of 200 lbs. and there are four casters in the kit, then the load rating for the kit will be 800 lbs.

Friction-ring stem casters each have a stem that presses into an appropriately sized hole or socket in tubes, pipes, wood, or compatible brackets on furniture or equipment. A spring ring at the end of the stem expands to hold the caster in place once it's installed in the hole or socket. Also known as grip-ring stem casters, these casters are used on furniture or equipment such as office chairs, tables, and medical equipment to allow them to roll as they're being moved or repositioned. Friction-ring stem casters require few or no tools for installation, making them well suited for applications where casters need to be replaced frequently. These swivel casters can rotate 360°, allowing equipment to change directions while rolling.
