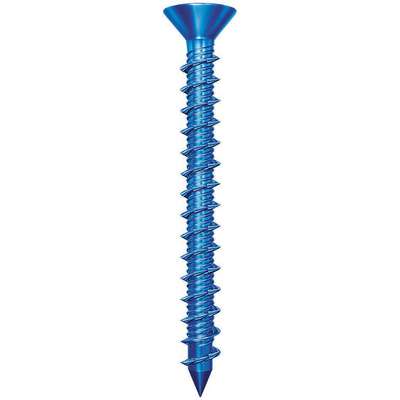

Flat Phillips Concrete Screw, 1/4" Dia. x 4", Steel, Blue Climaseal Fastener Finish

Zoom Icon

#922388-3 | Pkg Qty: 100

$97.65 pkg | $0.98 ea
Item Number 922388-3
Scanner Description Tapcon Anchor,Flat,Carb Steel,
Inventory Status Drop Ship Item
Weight 4.3 lb
Brand RED HEAD

Technical Specifications

Anchor Diameter
1/4 in.
Item
Concrete/Masonry Screw
Anchor Length
5 in.
Material Grade
18-8
Anchor Material
Steel
Max. Work Thickness
4 in.
Anchor Screw Head Style
Flat Phillips
Mfg Part Number
3197407
Anchor Screw Type
Concrete Screw
Min. Embedment
1 in.
Application
Specified for anchorage into Concrete, Brick or Block
Pack Quantity
100
Brand
RED HEAD
Seismic Approved
No
Fastener Finish
Blue Climaseal
Type
Tapcon, Blue Climaseal
ICC Approved for Cracked Concrete
No
Ultimate Shear (Lb.)
1360
ICC Approved for Un-Cracked Concrete
Yes
Ultimate Tension (Lbs.)
800

Product Description

Large-Diameter Tapcon® Self-Threading Anchors

  • Grade 5 zinc-plated, hardened steel
  • Removable structural screw anchors are for high-load capacity applications. Use in concrete and masonry and in dry, noncorrosive environments. Install with standard masonry drill bits.
  • Masonry Anchors
  • For wood-to-concrete applications Drill bit supplied in box of 100 each
  • Easy-to-install anchors can be quickly removed. Notched high-low threads cut into masonry for greater stability and pull-out values. Tapered shank provides a wedging action for a strong, reliable hold. Accommodate close-to-edge applications. Superior pull-out and shear strengths.
  • Note: Not recommended for use with aluminum when moisture may be present.

Compliance & Restrictions

Ship State Exclusion Product cannot ship to States or Zip Codes: PR
Item Barcode
9223883
  Name Item Description
Grainger Dropship Grainger Dropship 15X489 Tapcon Anchor,Flat,
UNSPSC CODES UNSPSC CODES 31161502
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Tapcon Anchor,Flat,
