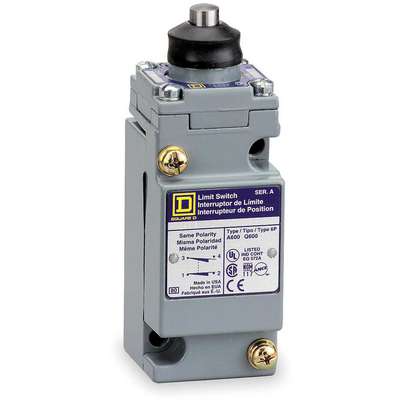

Rod, Adjustable Push Heavy Duty Limit Switch; Location: Top, Contact Form: 1NC/1NO, Vertical Movemen

Rod, Adjustable Push Heavy Duty Limit Switch; Location: Top, Contact Form: 1NC/1NO, Vertical Movemen

#922311-3 | Pkg Qty: 1

$256.20 pkg | $256.20 ea
Item Number 922311-3
Scanner Description Heavy Duty Limit Switch
Inventory Status Drop Ship Item
Weight 0.92 lb
Brand SQUARE D

Technical Specifications

AC Contact Rating
10A @ 600V
Item
Heavy Duty Limit Switch
Actuator Length
1.01 in.
Limit Switch Style
Heavy Duty Limit Switch
Actuator Location
Top
Mfr. Part Number
9007C52ED
Actuator Style
Plunger
Movement
Vertical
Amperage
10
NEMA Rating
1, 2, 4, 6, 6P, 12, 13
Amps
10
Operating Force
3.00 lb.
Basic Actuator Style
Plunger
Operating Temperature Range
0° to 185°F
Body Depth
1.14 in.
Pack Quantity
1
Body Height
2-1/2 in.
Replacement Body
2EG10
Body Material
Zinc
Replacement Head
2EG53
Body Style
Miniature
Replacement Receptacle
2EG21
Body Width
0.83 in.
Series
9007C
Boot Sealed Actuator
No
Standards
UL, CSA, CE
Brand
SQUARE D
Style
Top Push Rod Plunger
Contact Form
1NC/1NO
Threaded for Panel Mounting
No
DC Contact Rating
10A @ 600V
Travel
0.25 in.
Depth
1.79 in.
Type
Heavy Duty
Electrical Connection
Screw Terminals
Voltage
600 VAC/DC
Hazardous Location
No
Voltage Rating
600VAC/DC
Height
3.14 in.
Width
1.55 in.
IP Rating
67
Wiring Entry
1/2 in. NPT

Product Description

This heavy-duty limit switch features zinc body construction.

Item Barcode
9223113
  Name Item Description
Grainger Dropship Grainger Dropship 2UYL1 Heavy Duty Limit Switch
UNSPSC CODES UNSPSC CODES 39121509
VMRS (ATA) CODES VMRS (ATA) CODES 032-002-050 Heavy Duty Limit Switch
