POLYMERSHAPES

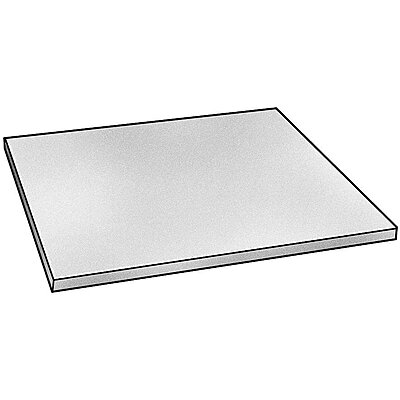

Sheet Stock, Acrylic, 48"L x 48"W x 0.220" Thick, 170 Max. Temp. (F), Clear
Hover over image to magnify
#922284-1 | Pkg Qty: 1
$156.36 pkg | $156.36 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
POLYMERSHAPES
Package Quantity
1
Color Family
Clear
Shipping Weight
24.1 lb.
Item
Sheet Stock
Tensile Strength
10200 psi
Length
48 in.
Thickness
0.22 in.
Material
Acrylic
Width
48 in.
Mfr. Part Number
BULK-PS-ACR-22
General
Characteristics
Transparent
Plastic Length
48 in
Corrosion and Chemical Resistance
Fair
Plastic Length Tolerance
±0.250 in
Friction Rating
Not Slippery
Plastic Properties
Transparent
Grade
Standard
Plastic Thickness
0.21875 in
Impact Strength
0.28 ft-lb/in
Plastic Thickness Tolerance
±10%
Length Tolerance
+/-0.250 in
Plastic Width
48 in
Machinability
Good
Plastic Width Tolerance
±0.25 in
Maximum Temperature
170 °F
Shape
Sheets
Metal Detectable
No
Temperature Range
32° to 170°F
Minimum Temperature
32 °F
Thickness Tolerance
±10%
Nominal Size
48 in W x 48 in L
Type
Standard
Operating Temp. Range
32° to 170°F
UV Resistant
Yes
Plastic Clarity
Clear
Water Absorption
0.4 %
Plastic Grouping
Sheet Stock
Water Absorption Rating
Poor
Plastic Hardness
Rockwell M95
Wear Factor
Fair
Plastic Hardness Rating
Hard
Width Tolerance
+/-0.25 in
Product Description
Extruded Acrylic Sheets
- Tensile strength: 10,500 psi (clear color); 11,030 psi (colors) Continuous use temp.: 170°F High molecular weight lends itself well to thermoforming, bending, and flame polishing. Provide excellent weather and impact resistance with low heat loss. Used in fabrication, picture framing, skylights, displays, signage, and lighting applications. Note: Additional sizes are available
Expertly Selected Product Pairings
Item Barcode
Sheet Stck,48 In. W,48 In. L,0.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1UVP1 | Sheet Stck, 48 In. W,48 |
 | UNSPSC CODES | 13102005 | |
 | VMRS (ATA) CODES | 053-006-009 | Sheet Stck, 48 In. W,48 |
