PARKER

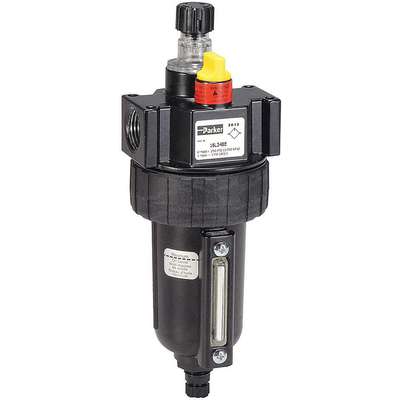

Compressed Air Lubricator: Micro Mist, 3/4 in NPT, 90 cfm, 250 psi Max Op Pressure, Knob, 17L

Hover over image to magnify
Air Line Lubricator,3/4In,90
Air Line Lubricator,3/4In,90

#922250-3 | Pkg Qty: 1

$215.11 pkg | $215.11 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adjustment Type
Screwdriver
Maximum Temperature
175 deg. F
Air Consumption
scfm
Maximum Temperature (Deg. F)
175
Body Material
Zinc
Mfr. Part Number
17L44BE
Bowl Material
Zinc
NPT
3/4 in.
Brand
PARKER
Oil Capacity
4.9 oz.
CFM
90
Overall Height
9.09 in.
Dome
Polycarbonate
Overall Length
3.24 in.
Drain Included
Yes
Overall Width
3-1/4 in.
Drain Type
Manual
Package Quantity
1
Item
Air Line Lubricator
Pipe Size
3/4 in. NPT
Material
Zinc
Series
7
Maximum Flow
90 cfm
Shipping Weight
3.15 lb.
Maximum Flow (CFM)
90 CFM
Valve Type
Needle
Maximum Pressure
250 psi
Width
3-1/4 in.
General
Adjustment Mechanism
Knob
Lubricator Bowl Material
Zinc
Air Inlet Type
NPT
Lubricator Type
Micro Mist
Air Outlet Size
3/4 in
Max. Pipe Run
100 ft
Air Outlet Type
NPT
Minimum Operating Pressure
0 psig
Dome Material
Polycarbonate
Modular Connection
Modular Connection
Drain Part Compatibility
PS829P
Oil Feed
Micromist
Features
Proportional Oil Delivery, Low Pick Up Flow, And Precise Oil Adjustment
Oil Feed Type
Micromist
For Fluid Type
Compressed Air
Pressure Drop
5 psi
For Maximum Pipe Run
100 ft
Recommended Lubricant
F442 Oil
For Substance Type
Air
Sensor
Bi-Directional
Includes
Bowl, Drain, Fill Plug, Gauge, Sight Dome
Sight Dome Included
Yes
Knob
Plastic
Sight Gauge Included
Yes
Lubricator Bowl Capacity
4.9 oz
System Location
Air Line

Product Description

Install close to the application to ensure effective oil distribution. For the Max. Flow, the CFM rating is based on 100 psig inlet and 5 psig pressure drop.
