OSG

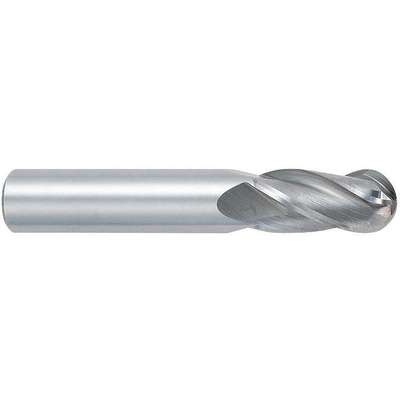

Ball End Mill, 5/16" Milling Diameter, Number of Flutes: 4, 13/16" Length of Cut, Bright (Uncoated)

Hover over image to magnify
End Mill,Carbide,5/16,4 Fl,Sgl
End Mill,Carbide,5/16,4 Fl,Sgl
Ball End Mill, 5/16" Milling Diameter, Number of Flutes: 4, 13/16" Length of Cut, Bright (Uncoated) Video

#922248-2 | Pkg Qty: 1

$31.95 pkg | $31.95 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
OSG
Item
Ball End Mill
Cast Iron Compatibility
Yes
Length of Cut
13/16 in.
Chip-Breaker
No
List Number
404BN
Cut
Right Hand
Material
Carbide
Cutting Direction
Right
Mfr. Part Number
404-3125-BN
Cutting Direction
Right Hand
Milling Diameter
5/16 in.
Cutting Type
Center
Neck Length
Not Applicable
Diameter
5/16 in.
Non Ferrous Compatability
Yes
Dimension Type
Fractional Inch
Number of Flutes
4
End
Single
Overall Length
2-1/2 in.
End Mill Application
Finishing
Pack Quantity
1
End Mill Cutting Type
Center Cutting
Primary Material Application
Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel
End Mill Material
Carbide
Shank Diameter
5/16 in.
End Style
Ball Nose
Shank Type
Straight
Finish
Bright (Uncoated)
Shipping Weight
.1 lb.
Grade
General Purpose
Single End/Double End
Single End
Hardened Compatibility
Yes
Type
Standard
Helix Angle
30 deg.
General
Application
For Aluminum, Carbon, Tool Steel, Cast Iron, 300 or 400 Series Stainless Steel
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Milling Dia.
5/16 in
Drilling Tool Configuration
Individual
Miniature End Mill
No
End Mill Style
Ball Nose
Primary Material Application ISO Code
H, K, N, P
Finish - Machining
Bright (Uncoated)
Shank Dia.
5/16 in
Material - Machining
Carbide
Shank Type - Machining
Straight
Material Grade - Machining
General Purpose

Product Description

Four-flute end mills clear chips more quickly than end mills with more flutes and allow for higher feed rates than end mills with fewer flutes. They also typically have larger cores and are less prone to breaking than end mills with fewer flutes. The bright finish on these end mills provides a smooth, polished surface.
