BRYANT

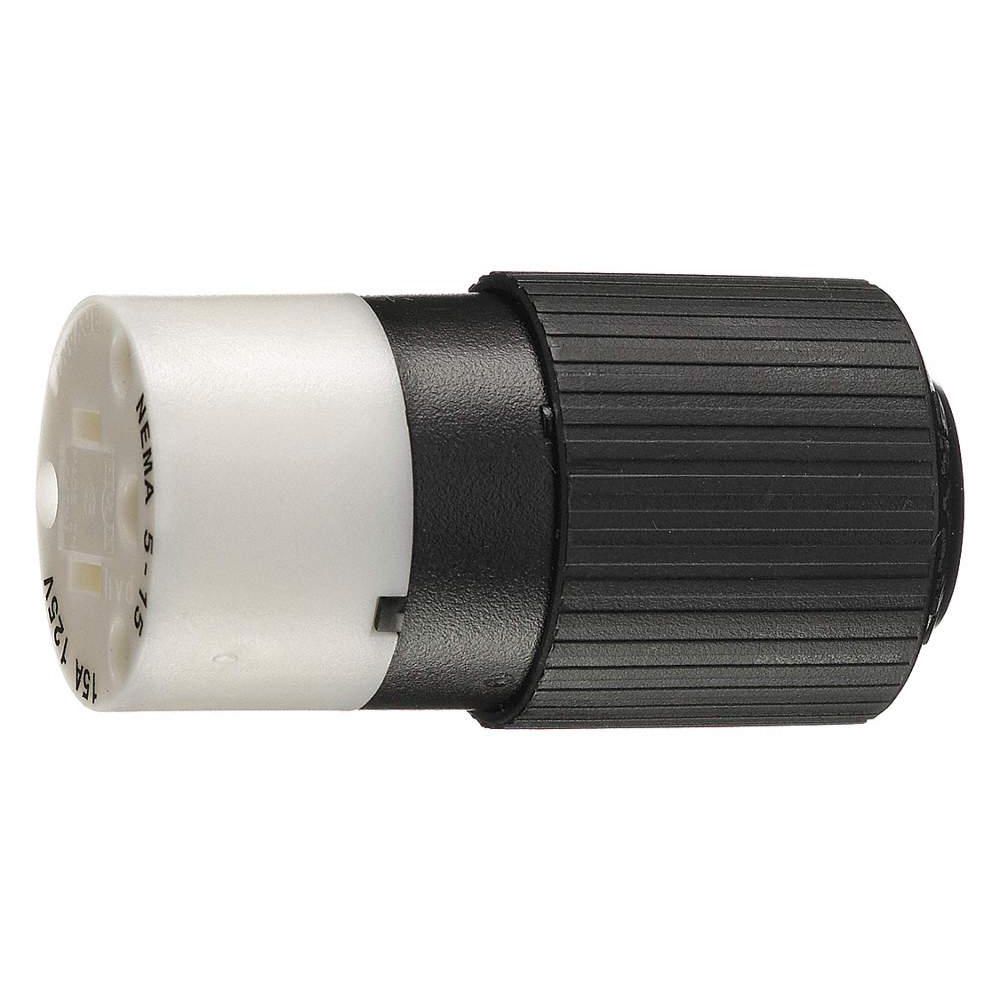

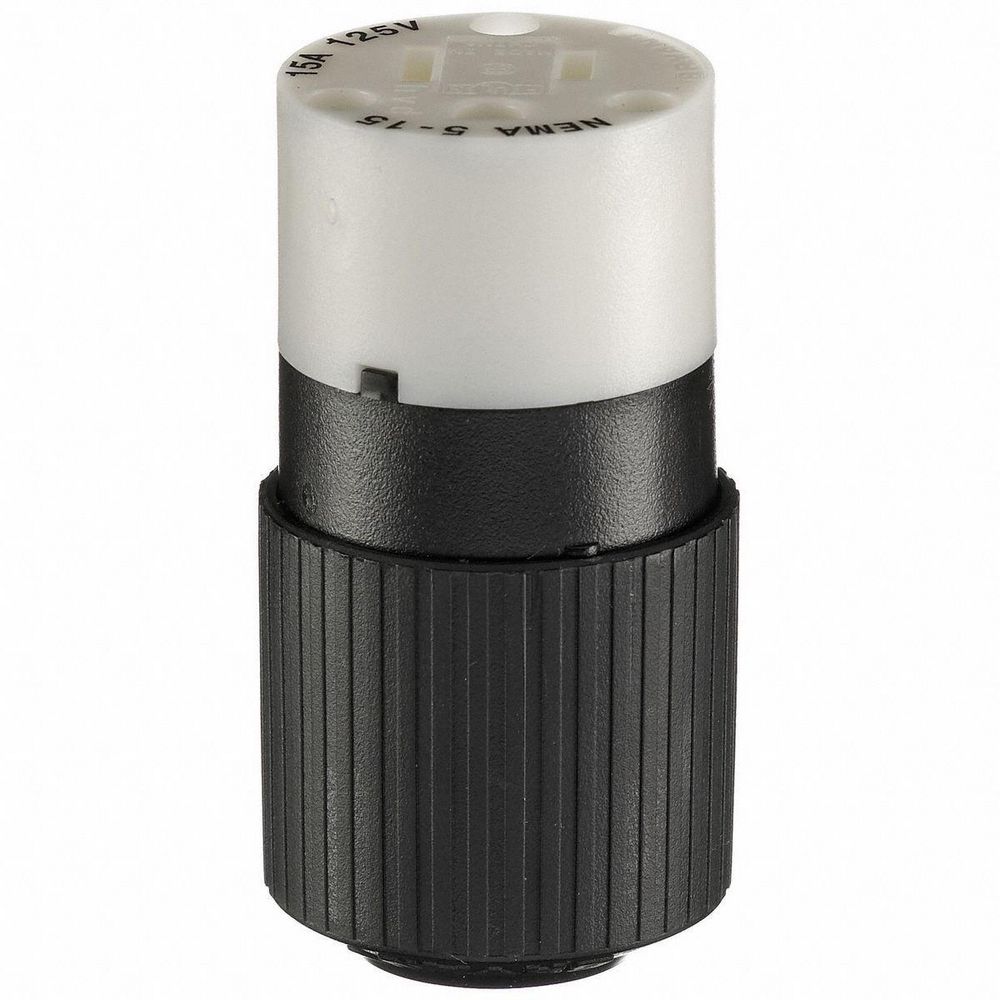

Bryant 15 Amp Industrial Grade Standard Straight Blade Connector, 5-15R NEMA Configuration, Black/White

Hover over image to magnify
Blade Connector,Black/Wht,15A,
PI_Asset_1979634
Blade Connector,Black/Wht,15A,
PI_Asset_1979634

#921862-9 | Pkg Qty: 1

$26.65 pkg | $26.65 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
15 A
Mfr. Part Number
BRY5269NC
Amps
15 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
14 AWG
Brand
BRYANT
NEMA Configuration - Plugs & Connectors
5-15
Color Family
Black / White
NEMA Plug Configuration
5-15R
Connection Orientation
Straight
NEMA Receptacle Configuration
5-15R
Cord Size
0.245 in to 0.655 in
Number of Poles
2
Corrosion Resistant
No
Number of Wires
3
Current Rating
15 A
Package Quantity
1
For Location
Indoor
Phase
Single
For Maximum Cable Diameter
0.655 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.3 in.
Power Indicator
No
Grade
Industrial
Shipping Weight
.11 lb.
Grounding
Grounded
Shrouded
Yes
Housing Material
Nylon
Special Features
Dust Resistant
IP Rating
Not Rated
Standards
CSA Certified, UL Listed
Insulation Material
Nylon
Voltage
125VAC
Item
Straight Blade Connector
Voltage Rating
125V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
10 AWG
General
Amps - Plugs and Receptacles
15 A
Special Features
Dust Resistant
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-15R

Product Description

Designed with tough, impact- and chemical-resistant nylon housing. Features internal Triple Gripper® cord clamp that automatically centers the cord and secures it. Dust seal surrounds cord to help prevent moisture and contaminants from entering the wiring chamber

Item Barcode
9218629
Blade Connector,Black/Wht,15A,
 NameItemDescription
Grainger DropshipGrainger Dropship49YY22Blade Connector,
UNSPSC CODESUNSPSC CODES39121421
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Blade Connector,
