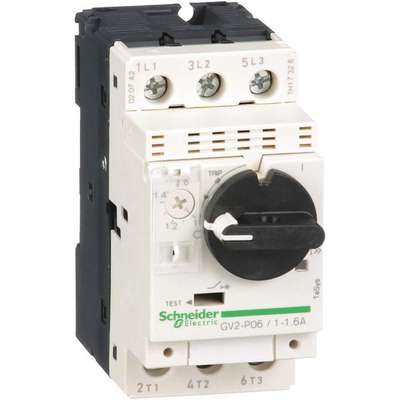

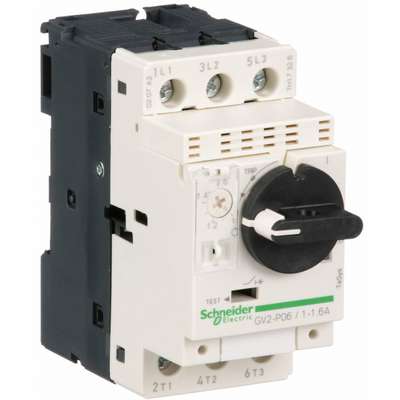

Schneider Electric Manual Motor Starter: Rotary Knob, No Enclosure, 1 to 1.6A, 3 Poles, 600V AC
Hover over image to magnify
#921743-9 | Pkg Qty: 1
$307.58 pkg
| $307.58 ea
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Number of Poles
3
Depth
3.83 in.
Pack Quantity
1
Description/Special Features
Reliable Overload Protection
Phase Loss Sensitivity
No
Enclosure NEMA Rating
No Enclosure
Standards
UL, CSA
Enclosure Type
Open
Starter Type
IEC Style
Height
3-1/2 in.
Type
IEC
Item
Manual Motor Starter
Width
1-3/4 in.
General
HP @ 1 Phase - 230V
1/10 hp
HP @ 3 Phase - 575V
1 hp
HP @ 3 Phase - 460-575V
0.75/1
Operator
Rotary Knob
HP @ 3 Phase - 460V
3/4
Overload Relay Amp Setting
1 to 1.6A
HP @ 3 Phase - 480V
3/4 hp
Pilot Light
Yes
Product Description
IEC Manual Motor Starters
- Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
