BONOMI

Check Valve: Single Flow, Inline Spring, 316 Stainless Steel, 3/8 in Pipe/Tube Size, PTFE

Hover over image to magnify
Check Valve,Stainless Steel,3/
Check Valve,Stainless Steel,3/

#921634-2 | Pkg Qty: 1

$63.00 pkg | $63.00 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
BONOMI
Mfr. Part Number
S800-3/8"
Connection Type
NPT
Mounting Position
Any
Item
Check Valve
Overall Height
1-11/32 in.
Length
2-5/16 in.
Package Quantity
1
Material
CF8M 316 Stainless Steel
Shipping Weight
.4 lb.
Maximum Temperature
450 deg. F
Width
1-11/32 in.
General
Application - Valves
General Purpose
Max. Temp. - Valves
352 Degrees F
Body Material - Valves
316 Stainless Steel
Max. Water Pressure - Valves
800 psi
Flow - Valves
3.5 gpm
Mechanism and Body Design
Inline Spring
Flow Design
Single
Min. Temp. - Valves
0 Degrees F
Full Flow - Valves
Yes
Mounting Orientation
Horizontal, Vertical
Max. Steam Pressure - Valves
125 psi WSP
Pipe or Tube Size
3/8 in

Product Description

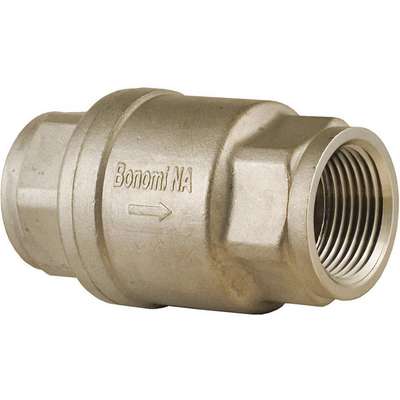

This Bonomi® check valve allows flow in only 1 direction to prevent backflow, while the spring-actuated design allows fast seating action. FNPT connections. Dual guided stem and disc plus a soft PTFE seal for a bubble-tight shutoff. The stainless steel body and spring are corrosion resistant and suitable for use with chemicals. Valve can be mounted vertically or horizontally.

Item Barcode
9216342
Check Valve,Stainless Steel,3/
 NameItemDescription
Grainger DropshipGrainger Dropship46CE63Check Valve, Stainless
UNSPSC CODESUNSPSC CODES40141622
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Check Valve, Stainless
