LINCOLN

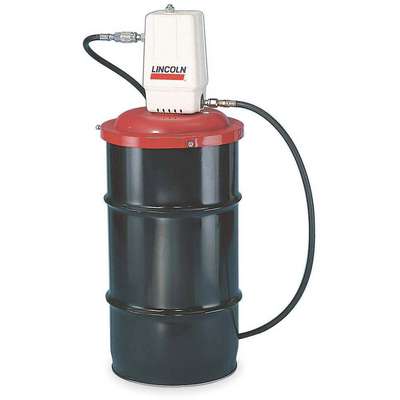

Lincoln Air Operated Drum Pump, Basic Pump with Discharge Hose, For Container Type Tote
#921286 | Pkg Qty: 1
$2,100.03 pkg | $2,100.03 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Inlet
1/4 NPT
Minimum Air Inlet Pressure
40
Air Inlet Size
1/4 in. FNPT
Ounces per Stroke
2.08
Air Motor Size
2 in.
Outlet Pressure Maximum
600
Brand
LINCOLN
Outlet Size
1/2 in.
Consumption @ 100 PSI
11 cfm
Package Quantity
1
Container Size
16 gal.
Power Source
Air
Fluid Inlet Thread
1 NPT
Pump Ratio
3:1
Hose Length
60 in.
Pump for Multiple Outlets
Yes
Item
Oil Pump Transfer System
Shipping Weight
36.62 lb.
Maximum Air Inlet PSI
200
Type
Air-Operated
Maximum Output
6 gpm
Working Flow Maximum
6
Mfr. Part Number
2437
General
Adapter Connection Type
FNPT
Includes Suction Tube
Yes
Bung Connection Dia.
2 in
Max. Air Pressure
200 psi
Compatible Chemicals
Automatic Transmission Fluid, Gear Lube, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Max. Flow Rate
6 gpm
Discharge Connection Type
FNPT
Max. Fluid Temp.
120 Degrees F
Discharge Tube Outlet ID
1/2 in
Max. Oil Flow
6 gpm
Discharge Tube Outlet OD
13/16 in
Max. Outlet Pressure
600 psi
For Container Size
275 gal
Min. Air Pressure
40 psi
For Container Type
Tote
Min. Fluid Temp.
30 Degrees F
For Media Type
Automatic Transmission Fluid, Gear Lube, Hydraulic Oil, Motor Oil
Not Recommended Chemicals
Diesel Fuel, Grease, Kerosene
Hose Inside Dia.
1/2 in
Pump Connection ID
1/2 in
Hose Outside Dia.
13/16 in
Pump Connection Type
FNPT
Housing Material - Pumps
Steel
Pump Package Type
Basic Pump with Discharge Hose
Includes
Air Coupler and Air Nipple, Air Hose, Lubricant Hose, Volume Elbow
Suction Tube Material
Steel
Includes Bung Adapter
Yes
Suction Tube OD
1 21/32 in
Includes Discharge Hose
Yes
Working Flow Max. (GPM)
6
Product Description
This Oil Pump Transfer System includes lubricant hose, volume elbow, air hose, air coupler, and air nipple.
Item Barcode
Oil Pump Transfer System,Air-
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 2DPL3 | Oil Pump Transfer | |
UNSPSC CODES | 40151524 | ||
VMRS (ATA) CODES | 053-006-009 | Oil Pump Transfer |
