SANDPIPER

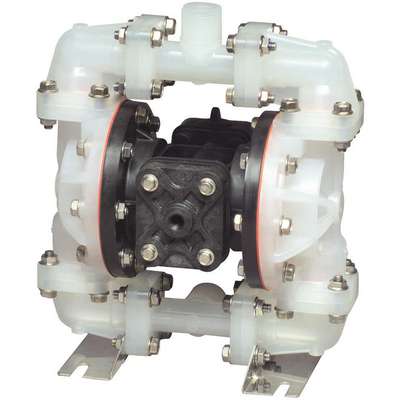

Double Diaphragm Pump: 1/2 in Inlet/Outlet Size, NPT Connection, 14 gpm Max. Flow, Buna N
Hover over image to magnify
#921282-8 | Pkg Qty: 1
$1,095.51 pkg | $1,095.51 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CE, ATEX, EAC
Maximum Diameter Solids
1/8 in.
Air Inlet Size
1/4 in. FNPT
Maximum Flow
14 gpm
Ball Material
Buna
Maximum Flow (GPM)
14
Body Material
Polypropylene
Maximum Operating PSI
100
Brand
SANDPIPER
Maximum Operating Pressure
100 psi
Check Seat Material
PTFE
Maximum Temperature (Deg. F)
190°F
Connection Style
NPT
Mfr. Part Number
S05B2PBTPNI000.
Diaphragm Design
Buna
Mfr. Warranty Length
1 yr.
Diaphragm Material
Buna
Operation Type
Air Operated
Flow
14 gpm
Pack Quantity
1
Height
11-5/16 in.
Pump Operation Type
Air Operated
Housing Material
Polypropylene
Self-Priming Dry
16 ft.
Inlet/Outlet
1/2 in.
Self-Priming Wet
15 ft.
Inlet/Outlet Size
1/2 in.
Shipping Weight
16 lb.
Item
Double Diaphragm Pump
Valve Type
15 ft.
Length
7-1/16 in.
Width
10-1/8 in.
Manifold Connection
Multiport
General
Diaphragm Material - Pumps
Buna N
Housing Material - Pumps
Polypropylene
For Use With
Highly Corrosive Fluids, Intermittent/On-Demand, Low Abrasive Fluids, and Suspended Solids
Max. Dia. Solids
1/8 in
Product Description
Nonmetallic Air-Operated Double Diaphragm Pumps
- Self-priming to 15 ft. wet, 10 ft. dry (20 ft. dry for Sandpiper) Run-dry capability
- Easily pump slurries, solvents, and high-viscosity liquids such as paints and inks. Sandpiper® pumps feature all-bolted construction and abrasion- and corrosion-resistant materials. Free-standing support base is useful in portable applications. Ingersoll-Rand/ARO® pumps are constructed of highly fatigue- and abrasion-resistant materials. Air-pressure air valve design helps prevent stalling. Dayton® pumps all-bolted bodies are injection-molded and structurally reinforced with a fiber fill. Spring-assisted air valve has proprietary seal rings that never require lubrication.
- Housing Materials
- Polypropylene
- Highly resistant to many caustics and a wide variety of nonaggressive water-based liquids.
