SPEEDAIRE

1-1/4" Air Cylinder Bore Dia. with 5" Stroke Stainless Steel , Nose Mounted Air Cylinder

Hover over image to magnify

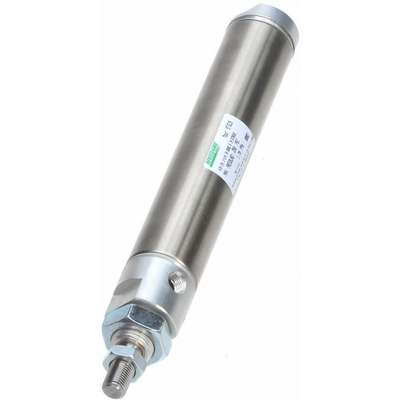

Air Cylinder,1-1/4 In. Bore,5
PI_Asset_1363238
Air Cylinder,1-1/4 In. Bore,5
PI_Asset_1363238

#921144-5 | Pkg Qty: 1

$119.83 pkg | $119.83 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
scfm
Finish
Hard Coat Anodized
Air Cylinder Mount
Nose
Item
Air Cylinder
Air Cylinder Type
Round Body
Maximum Pressure
250 psi
Body Material
Stainless Steel
Mfr. Part Number
NCDMB125-0500
Brand
SPEEDAIRE
Mount
Nose
Cushion Type
None
Mounting Style
Front Nose
Cylinder Action
Double Acting
Overall Length
9-1/2 in.
Cylinder Ports
1/8 in. NPT
Package Quantity
1
Cylinder Type
Round
Port Size
1/8 in. NPT
Dimension A
9-1/2 in.
Shipping Weight
.95 lb.
Dimension B
1.32 in.
Stroke
5 in.
Dimension C
3/4 in.
Tube Material
Stainless Steel
End Cap Material
Aluminum
Type
Double Acting
General
Action Type
Double Acting
Nose Mount Thread
3/4"-16 UNF
Air Cylinder Bore Dia.
1 1/4 in
Piston Rod
Chrome Plated Carbon Steel
Air Cylinder Product Group
Air Cylinder
Piston Rod Material
Chrome Plated Carbon Steel
Bore Dia.
1 1/4 in
Rod Dia.
0.44 in
End Caps
Aluminum
Rod Thread Length
0.75 in
Features
Switched
Rod Thread Size
7/16"-20 UNF
Magnetic Piston
Yes
Single Acting/Double Acting
Double Acting

Product Description

Single-Acting Stainless Steel Body Air Cylinders

  • Spring return Operating pressure range: 25 to 250 psi Operating temp. range: 40° to 140°F Include magnetic piston for use with autoswitches Permanently lubricated, nonrepairable cylinders are dimensionally interchangeable with a number of manufacturers' cylinders. Chrome-plated carbon steel piston rod and stainless steel tube improve corrosion resistance. Piston magnet allows autoswitches to sense stroke piston. NPT ports. Rubber bumper. Double-Acting Stainless Steel Body Air Cylinders
  • Operating pressure range: 8 to 250 psi Operating temp. range: 40° to 140°F Include magnetic piston for use with autoswitches Permanently lubricated, nonrepairable cylinders are dimensionally interchangeable with a variety of manufacturers' cylinders. Stainless steel tube and chrome-plated carbon steel piston rod improve corrosion resistance. Piston magnet allows autoswitches to sense stroke piston. NPT ports.
