DAYTON

Dayton 110VDC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Square

Hover over image to magnify

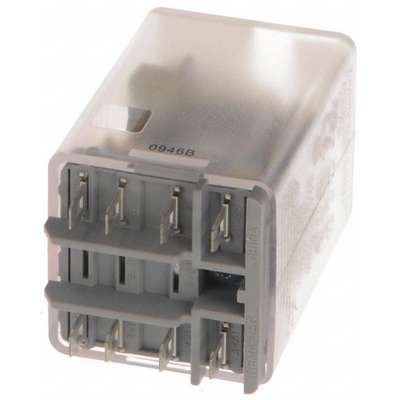

Plug In Relay,8 Pins,Square,
PI_Asset_1367791
Plug In Relay,8 Pins,Square,
PI_Asset_1367791
Dayton 110VDC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Square Video

#921139-1 | Pkg Qty: 1

$18.43 pkg | $18.43 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 277 V
Number of Pins
8
Base Type
Square
Number of Poles
2
Brand
DAYTON
Package Quantity
1
Coil VA Rating
1.22
Pins
8
Coil Volts
110 VDC
Plug-In Relay Style
General Purpose
Contact Form
DPDT
Push To Test
No
Contact Material
Silver Alloy
Relay Power Consumption
1.2 W
Contact Rating
10 A @ 277 VAC/30 VDC
Resistive Contact Amp Rating
16
DC Contact Rating
10 A @ 28 V
Shipping Weight
.2 lb.
Input Power Consumption
1.2 W
Socket
5X853
Item
General Purpose Relay
Socket Code
C
Mfr. Part Number
5YR09
Status Indicator
Mechanical Flag
Mounting
Plug In
Type
Standard
General
AC Contact Rating - Relay
10A @ 277V
Mounting - Relay
Plug In
Base Type - Plug In Relay
Square
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Power Consumption - Relay
1.2 W
DC Contact Rating - Relay
10A @ 28V
Socket Code - Relay
C
HP @ 120V
1/3 hp
Standards
E40944
HP @ 240V
1/2 hp

Product Description

General Purpose Relay, Coil Volts 110V DC, AC Contact Rating - Relay 10A @ 277V, DC Contact Rating - Relay 10A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay C, Power Consumption - Relay 1.2 W, Contact Material Silver Alloy, Status Indicator Mechanical Flag, Push To Test No
