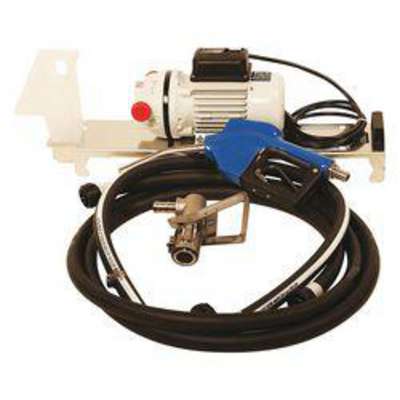

Electric Operated Drum Pump: 1/10 hp Motor HP, 8 gpm Max. Flow Rate, 110V AC, 4.5
Hover over image to magnify
#920987-5 | Pkg Qty: 1
$1,489.77 pkg | $1,489.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adapter Material
316 Stainless Steel
Motor Type
2 Pole
Adapter Type
RSV
Nozzle Material
Stainless Steel
Agency Compliance
ISO
Nozzle Type
Automatic
Amps
3-1/2
Outlet Size
3/4" Barb
Bearing Type
Sealed Ball
Pack Quantity
1
Brand
LIQUIDYNAMICS INC.
Phase
1
Bypass Valve
Internal
Power Source
Electric
Duty
Intermittent
Pressure Range
23 psi
Food Grade
No
Pump Body Material
Polypropylene
Full Load Amps
4-1/2
Pump Design
Nutating Diaphragm
GPM
8
Seal Material
EPDM
Gasket Material
EPDM
Seal Type
Mechanical
Hose Material
Peroxide Cured EPDM
Self-Priming
Yes
Housing Material
Polypropylene
Shaft Material
Stainless Steel
Hz
60
Shipping Weight
31.4 lb.
Inlet
3/4"
Spout Material
316 Stainless Steel
Inlet Size
3/4"
Suction Lift
6 ft.
Item
Electric Operated Drum Pump
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Metered
Yes
Variable Speed
No
Mfr. Part Number
DT15H20XAPXXRSV
Voltage
115 VAC
Mfr. Warranty Length
21 yr. Pump, 1 yr. Dispensing System
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Motor Enclosure
IP55
pH Range
5.0 to 10
Motor RPM
1,750 RPM
General
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Includes Suction Tube
Yes
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Max. Flow Rate
8 gpm
Diesel Exhaust Fluid Compatible
Yes
Max. Fluid Temp.
104 Degrees F
Discharge Connection Type
Hose Barb
Max. Head - Pumps
48 ft
Discharge Tube Outlet ID
3/4 in
Max. Head Pressure
23 psi
Discharge Tube Outlet OD
1 in
Max. Oil Flow
8 gpm
Explosion Proof
No
Max. Outlet Pressure
23 psi
Features
Dispenses 9 gpm
Max. Viscosity
10 cps
For Container Size
55 gal, 275 gal, 330 gal
Min. Fluid Temp.
17 Degrees F
For Container Type
Drum, Tote
Noise Level
70 db
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Nominal Voltage
110V AC
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Frequency (Hz)
60
Nozzle Operation
Automatic
Height Above Container
4 in
Number of Phases
1
Hose Cover Material
Thermal Plastic
Pump Connection OD
1 in
Hose Inside Dia.
3/4 in
Pump Connection Type
Hose Barb
Hose Outside Dia.
1 in
Pump Package Type
Metered Dispensing with Automatic Shut-Off
Hose Tube Material
EPDM
Rated Voltage
115V AC
Housing Material - Pumps
Polypropylene
Runs Dry
Yes
Includes
Coupler, Drip Cup, Hose, Nozzle, Nozzle Hanger, Spring Loaded Stainless Steel Drum Mounting Bracket
Spout Connection Type
Integral to Nozzle
Includes Bung Adapter
No
Spout Discharge Size
3/4 in
Includes Discharge Hose
Yes
Suction Tube ID
3/4 in
Includes Nozzle
Yes
Suction Tube Material
EPDM
Includes Spout
Yes
Suction Tube OD
1 in
Product Description
Diesel exhaust fluid (DEF) stationary electric drum pumps are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. These pumps are certified to ISO standards that regulate the handling, transportation, and storage of DEF. They are used for dispensing and transferring moderate to large volumes of DEF when servicing late model trucks and SUVs as well as SCR-based stationary industrial systems that operate on diesel fuel.
