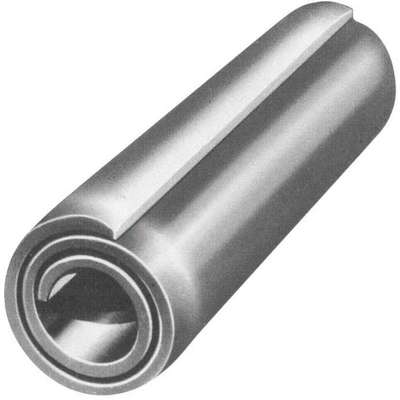

Steel Coiled Spring Pin, 3" L, Plain Fastener Finish

Steel Coiled Spring Pin, 3" L, Plain Fastener Finish

#920987-4 | Pkg Qty: 5

$24.34 pkg | $4.87 ea
Item Number 920987-4
Scanner Description Spring Pin,Coiled,1/2inx3in,
Inventory Status Drop Ship Item
Weight 0.53 lb
Brand APPROVED SUPPLIER

Technical Specifications

Actual Diameter
0.516-0.535 in.
Material
Carbon Steel
Basic Material
Steel
Material Grade
Spring Steel
Brand
APPROVED SUPPLIER
Meets
ASME B18.8.2
Chamfer Diameter
0.488 in.
Mfr. Part Number
U39140.050.0300
Chamfer Length Reference
0.110 in.
Outside Diameter
1/2 in.
Double Shear Strength
22,500 lb.
Overall Length
3 in.
Fastener Finish
Plain
Pack Quantity
5
Fits Hole Diameter
0.493-0.510 in.
Standards
ASME B18.8.2
Item
Coiled Spring Pin
System of Measurement
Fractional

Product Description

Spring Pin, System of Measurement Inch, Spring Pin Type Coiled, Basic Material Steel, Material Grade Spring Steel, Fastener Finish Plain, Outside Dia. 1/2 in, Fastener Length 3 in, Standards ASME B18.8.2, Nominal Diameter 1/2 in, Chamfer Diameter 0.488 in, Chamfer Length Reference 0.11 in, Actual Dia. (Min.-Max) 0.516-0.535 in, Fits Hole Dia. (Min.-Max.) 0.493-0.510 in, Double Shear Strength (Lbs.) 22,500, PK 5

Item Barcode
9209874
  Name Item Description
Grainger Dropship Grainger Dropship 41LX08 Spring Pin, Coiled, PK5
UNSPSC CODES UNSPSC CODES 31163201
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-025 Spring Pin, Coiled,1/
