TRAMEC SLOAN

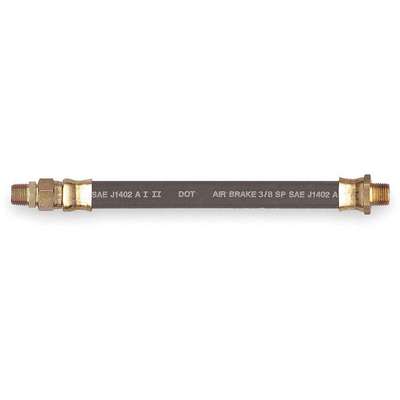

Tramec Sloan Rubber Air Brake Hose, Brass, 3/8" x 3/8" x 30", Black

Hover over image to magnify
Hose Assembly,30 In L,3/8-18
Hose Assembly,30 In L,3/8-18
Tramec Sloan Rubber Air Brake Hose, Brass, 3/8" x 3/8" x 30", Black Video

#920915-4 | Pkg Qty: 1

$20.40 pkg | $20.40 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
TRAMEC SLOAN
Material
Synthetic Rubber
Color Family
Black
Meets Standards
SAE J844, TYPE 3B and DOT-FMVSS 106
Fitting Material
Brass
Mfr. Part Number
2ZJN7
Hose Inside Diameter
3/8 in.
Operating Pressure
225 psi
Hose Length
30 in.
Package Quantity
1
Hose Material
Rubber
Shipping Weight
.67 lb.
Inside Diameter
3/8 in.
Straight Air Brake Assemblies Type
Single Swivel
Item
Hose Assembly
Swivel End Pipe Thread
3/8 in.
Length
30 in.
Working Pressure
225 psi
General
Compatible Chemicals
Air, Fresh Water
Hose Fitting B Size
3/8 in
Hose Configuration
Coupled Assembly
Hose Fitting B Type
MNPT
Hose Cover Material
Synthetic Rubber
Hose Fittings
Brass 3/8 in MNPT x Brass 3/8 in MNPT
Hose Fitting A Material
Brass
Hose Tube Material
Synthetic Rubber
Hose Fitting A Size
3/8 in
Includes
Adapter
Hose Fitting A Type
MNPT
Temp. Range
-40 Degrees to 200 Degrees F
Hose Fitting B Material
Brass

Product Description

Air-brake hose assemblies can withstand exposure to gasoline, diesel fuel, oils, and commonly used road-cleaning chemicals. These hoses are used for air-brake lines on commercial trucks.

Air-brake hose assemblies are used to create air-brake lines on commercial trucks, over-the-road vehicles, and medium-duty trucks. Also called air-brake tubing, these flexible hoses connect to rigid lines in the brake system to allow movement and absorb vibration in the brake lines. They have fittings on both ends for connecting to compatible equipment.

Expertly Selected Product Pairings

Silicone Rubber Tape, 1" X 36'
$26.88 pkg | $26.88 ea
Item: 911042-7 | Pkg Qty: 1

Item Barcode
9209154
Hose Assembly,30 In L,3/8-18
 NameItemDescription
Grainger DropshipGrainger Dropship2ZJN7Hose Assembly,30
UNSPSC CODESUNSPSC CODES25171702
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Hose Assembly,30
